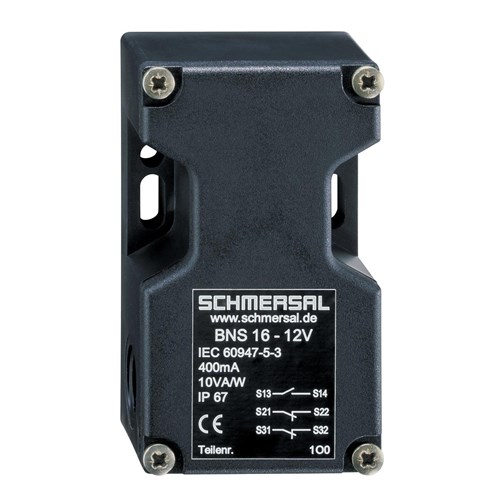

Schmersal 101172553 Magnetic Safety Sensor NO+NC

Product Code: 101172553

  • Durable die-cast light alloy housing
  • Reliable snap action mechanism
  • IP67-rated for dust and water resistance
  • Long mechanical life of 20 million cycles
  • Operates at speeds up to 1 m/s
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A (max.switching)
Rated Voltage (Ur)
100V AC/DC (max.switching)
Operating Mode
Power-to-lock
Actuating Direction
Front-side (face) sensing

Mechanical

Actuator Type
BPS 16
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
39.5mm (length)
Height
93mm
Weight
0.000125kg
Width
55mm

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C
