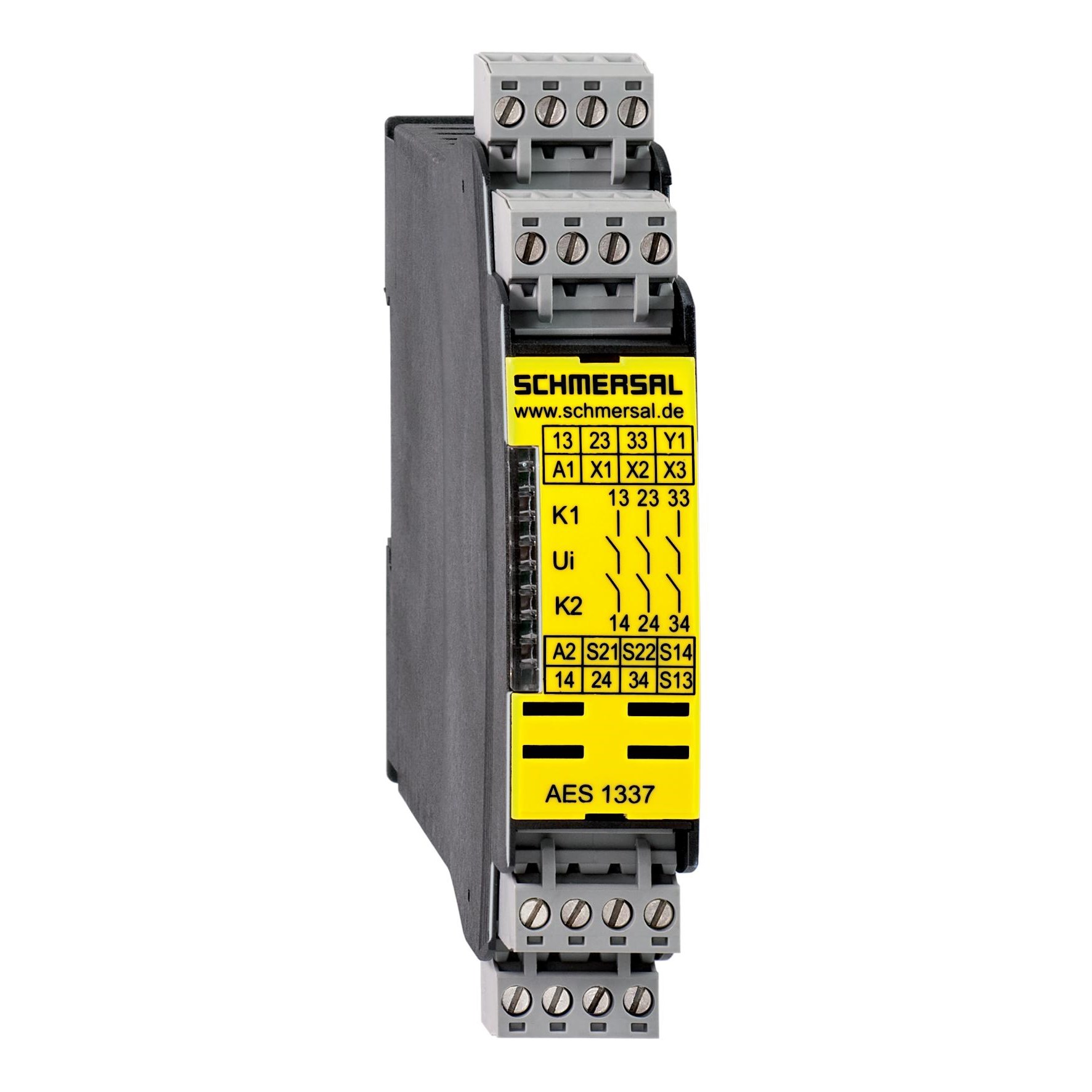

Schmersal 101172210 Safety Relay Module 26.4VAC, 28.8VDC

Product Code: 101172210

  • Operates on 26.4 VAC or 28.8 VDC
  • Durable with 10 million mechanical cycles
  • Compact size: 22mm W x 100mm H x 121mm D
  • Made from glass fibre reinforced thermoplastic
  • Complies with EN and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay Module
Brand
Schmersal
Series
AES 1337

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V AC, 24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
100 mm
Weight
280 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 45 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
1
Safe Relay Outputs, Stop 0
3
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e

Documents

IPD Product Catalogue V17
