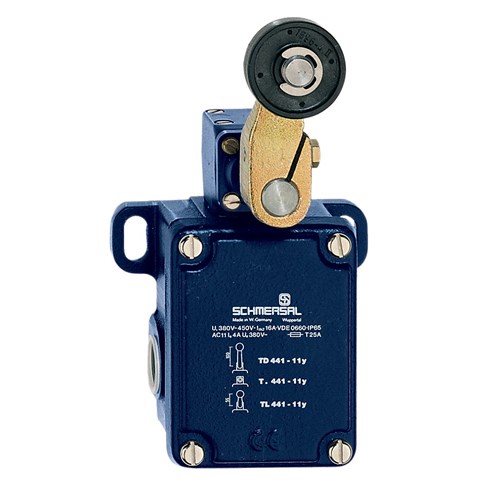

Schmersal 101171772 Position Switch

Product Code: 101171772

  • IP65 rated for dust and water resistance
  • Complies with IEC/EN60947-5-1 standards
  • Operates at 1 mm/min actuating speed
  • Durable with 5 million mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
400V
Switching Principle
Slow action, double break
Utilization Category
AC-15 250 VAC / 4 A
Contact Configuration
1 NC + 1 NO
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Cross Section
1.5mm² to 2.5mm²
Cable Entry
Screw terminals; 2 x M20 x 1.5 mm² cable entries
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller plunger; roller Ø25 mm

Dimensions & Physical Data

Depth
145
Height
106
Weight
1.265kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 120°C

Safety, Standards & Compliance

Standards and Approvals
EN IEC 60947-5-1
