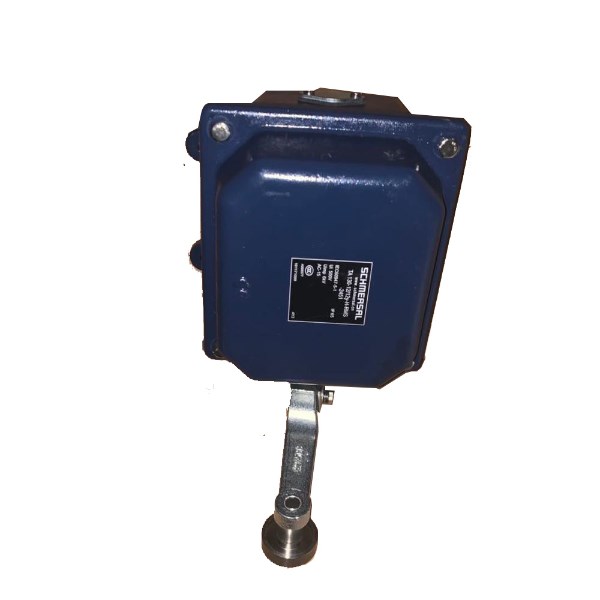

Schmersal 101171099 Position Switch

Product Code: 101171099

  • Compact design for space-saving installation
  • High precision and reliability in operation
  • Durable construction ensures long lifespan
  • Easy to install and maintain
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
130

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action
Utilization Category
AC-15 230 VAC / 10 A
Contact Configuration
2 NO + 4 NC)
Mechanical Life
1,000,000 operations
Thermal Test Current
25A

Mechanical

Cable Entry
Screw connection; M25 cable entry
Housing Material
Cast iron, galvanised; painted housing coating
Actuator / Operating Element
Roller lever; brass roller

Dimensions & Physical Data

Depth
151
Height
170
Weight
4.41kg
Width
236

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
CCC; cULus; EN IEC 60947-5-1
