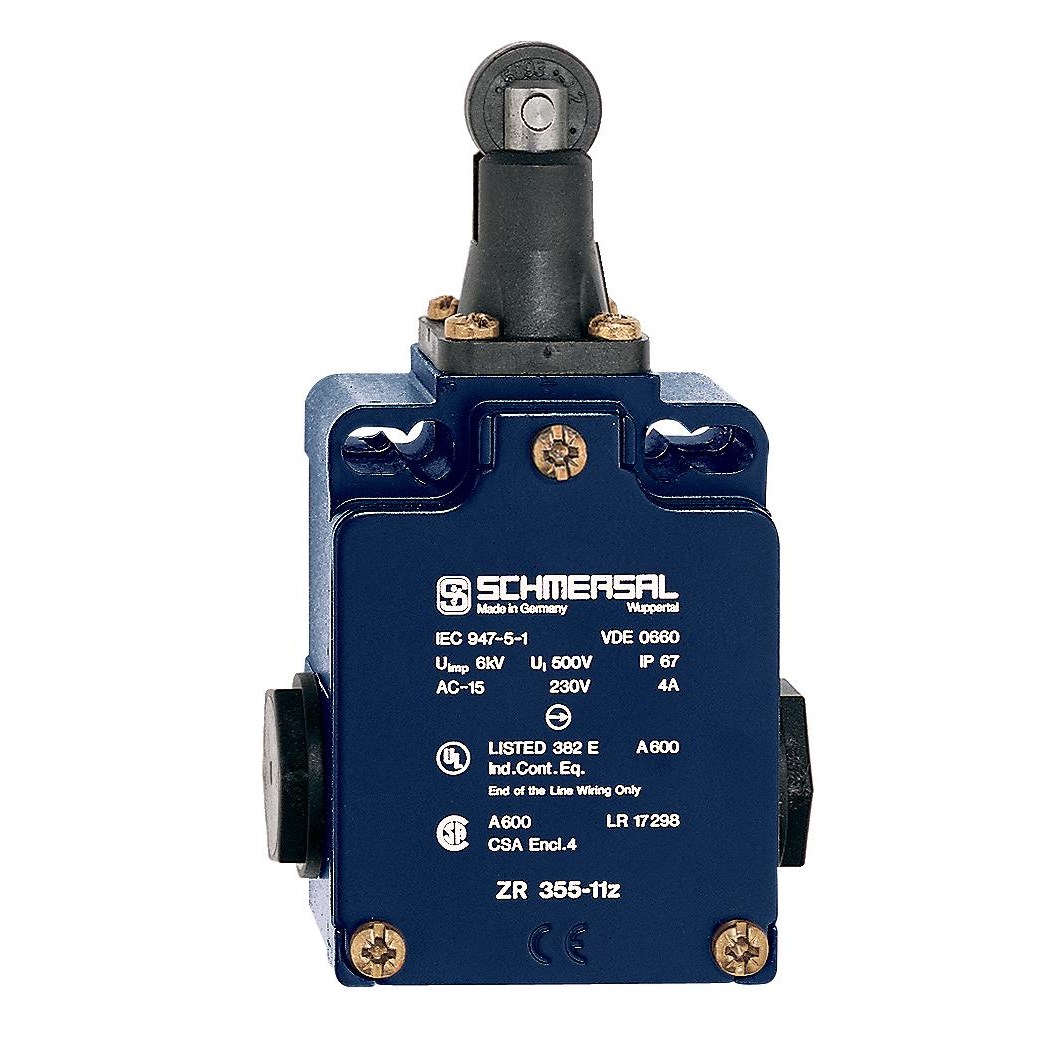

Schmersal 101170147 Position Switch with Safety Function Roller Plunger 1NO-1NC Die Cast Light Alloy Silver Contact

Product Code: 101170147

  • Rated for 230 VAC, 4 A
  • Durable die-cast light alloy housing
  • IP65/IP67 protection against dust and water
  • Roller plunger actuator with slow action switching
  • Long mechanical life: 30 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
116.6mm
Weight
0.24kg
Width
66.7mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
