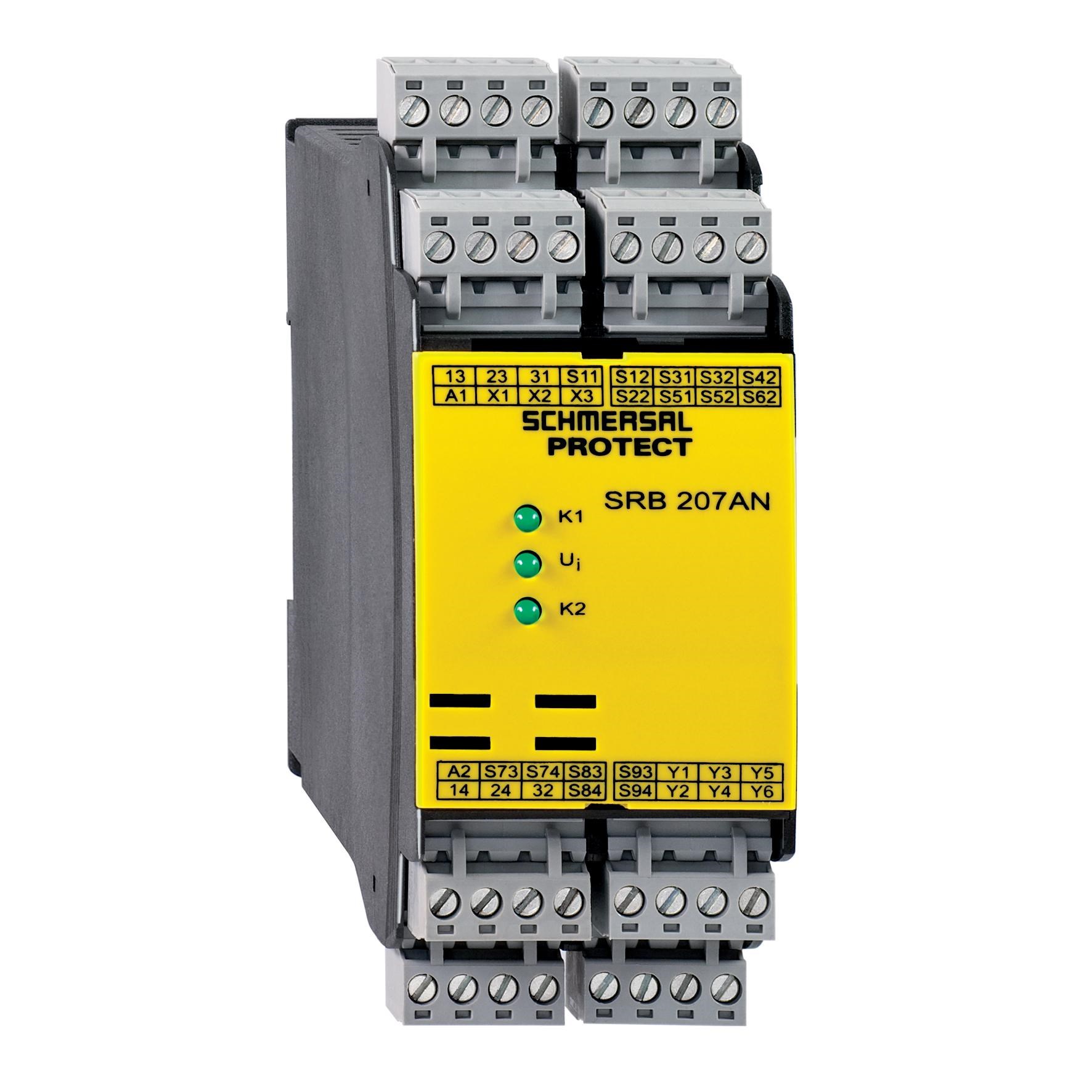

Schmersal 101170117 Safety Relay Module 24VDC

Product Code: 101170117

  • Operates at 24 VDC, 3 W power
  • IP20 protection rating
  • Max temp: 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay Module
Brand
Schmersal
Series
SRB207 AN

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V AC, 24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
100 mm
Weight
439 g
Width
45 mm

Environmental

Operating Temperature
-25 to 45 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
1
Auxiliary Semiconductor Outputs
6
Safe Relay Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
3
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e

Documents
