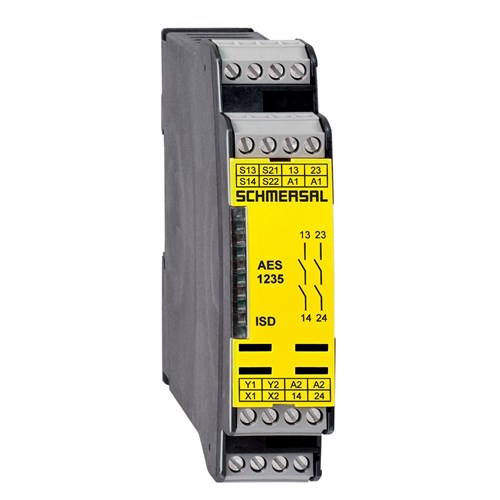

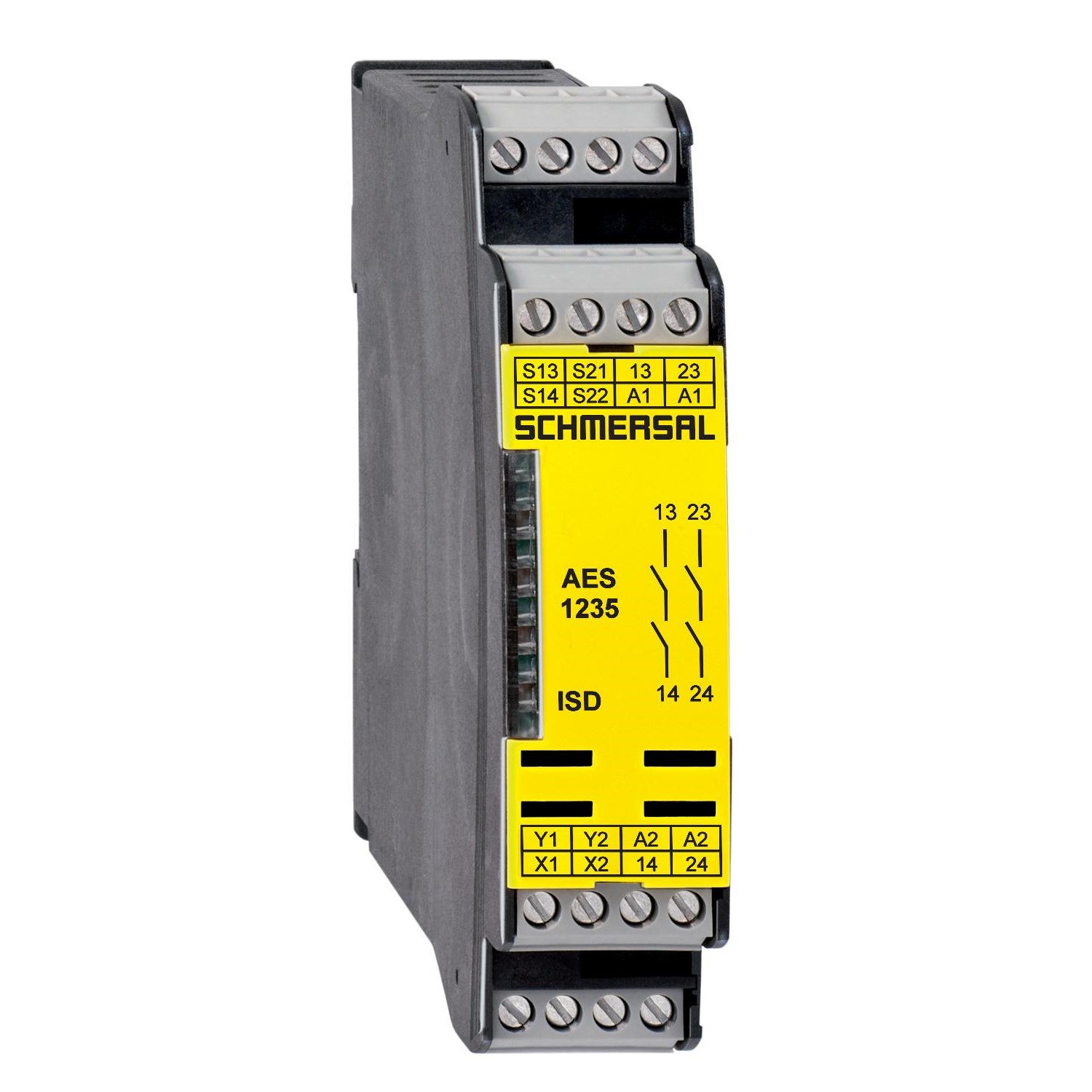

Schmersal 101170049 Safety Relay Module 24VDC NO-NC

Product Code: 101170049

  • Monitors at 24 VDC with 1000 A current capacity
  • Durable aluminium housing, IP20 protection
  • Long-lasting with 1,000,000 mechanical cycles
  • NO-NC contact config with silver contacts
  • Complies with BG-GS-ET-14 and EN IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay Module
Brand
Schmersal
Series
AES 1235

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V AC, 24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
100 mm
Weight
240 g
Width
22.5 mm

Environmental

Operating Temperature
0 to 55 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Semiconductor Outputs
2
Safe Relay Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
3
Safety Integrity Level
SIL 2
Monitoring Circuit
Yes
Performance Level
PL d
