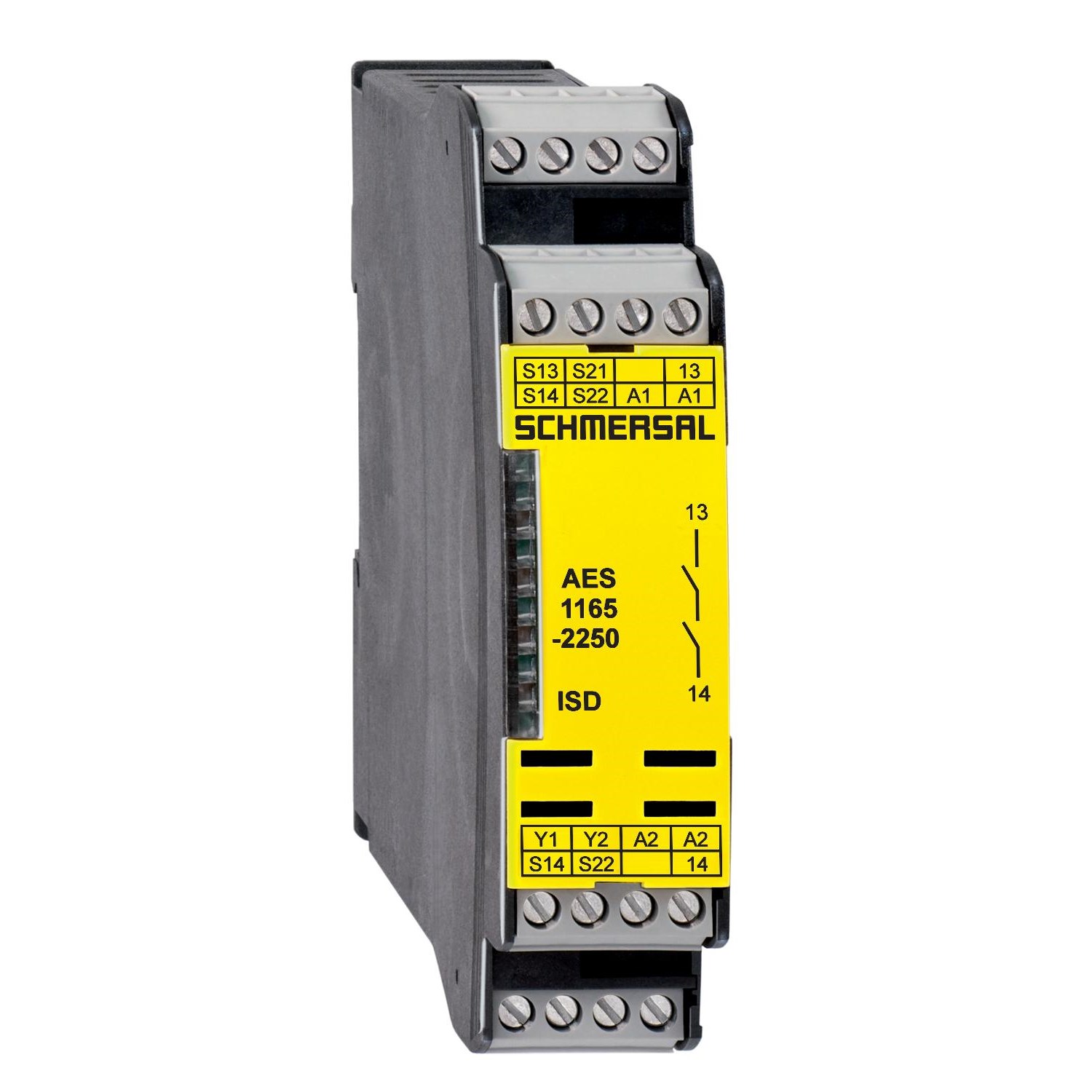

Schmersal 101170048 Safety Relay Module 26.4VAC, 28.8VDC

Product Code: 101170048

  • Handles 26.4 VAC or 28.8 VDC, 6 A
  • Compact size: 22x100x121 mm
  • Durable glass fibre reinforced housing
  • High protection rating: IP20/IP40
  • Long mechanical life of 20M cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay Module
Brand
Schmersal
Series
AES 1165-2250

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V AC, 24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
100 mm
Weight
200 g
Width
22.5 mm

Environmental

Operating Temperature
0 to 55 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Semiconductor Outputs
2
Safe Relay Outputs, Stop 0
1
Safe Relay Outputs, Stop 1
0
Safety Category
3
Safety Integrity Level
SIL 2
Performance Level
PL d

Documents

IPD Product Catalogue V17
