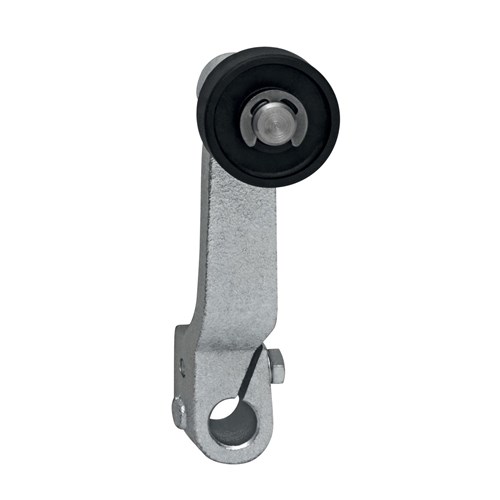

Schmersal 101169534 Position Switch K240 Angle Roller Lever 1NO-1NC Aluminium Silver Contact

Product Code: 101169534

  • Durable aluminium housing, IP67 protection
  • Magnet snap action with electromagnetic reset
  • 1NO+1NC contact configuration for versatility
  • K240 angle roller lever actuator type
  • Long mechanical life: 30 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
471 roller lever A

Electrical

No. of N/C Contacts
6
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
10A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
25A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
190mm
Height
143mm
Weight
4,615g
Width
194mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
