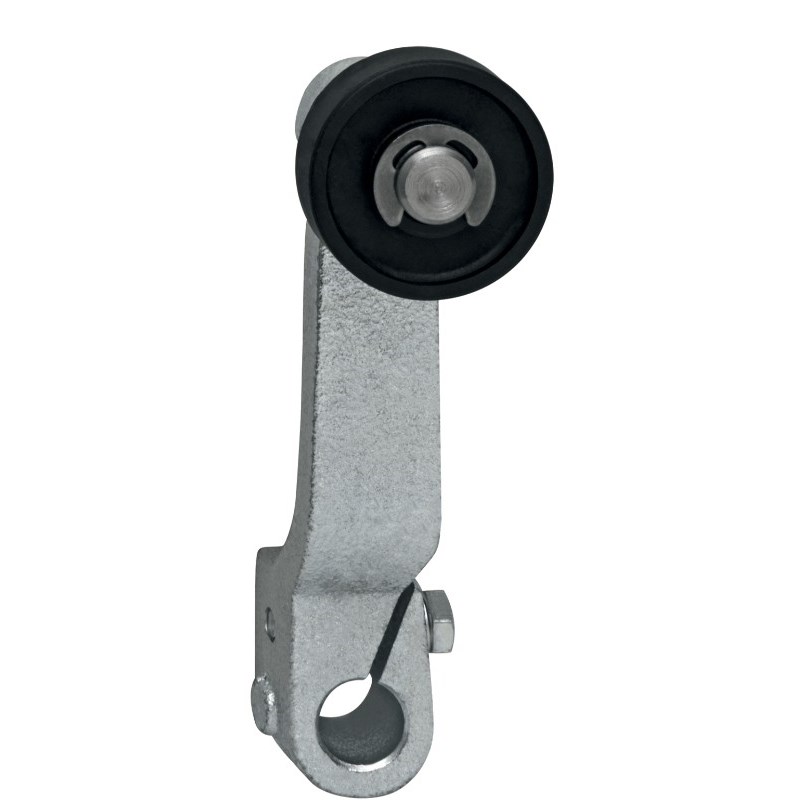

Schmersal 101169156 Position Switch

Product Code: 101169156

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
471

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Mechanical switching
Contact Configuration
2 NC left + 2 NC right
Mechanical Life
30,000 operations
Thermal Test Current
25A

Mechanical

Cable Cross Section
1.5mm² to 4mm²
Cable Entry
Screw connection; M25 cable entry
Housing Material
Cast iron, galvanised; enamelled
Actuator / Operating Element
Pull lever

Dimensions & Physical Data

Depth
123
Height
250
Weight
4.285kg
Width
158

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; cULus; EN IEC 60947-5-1
