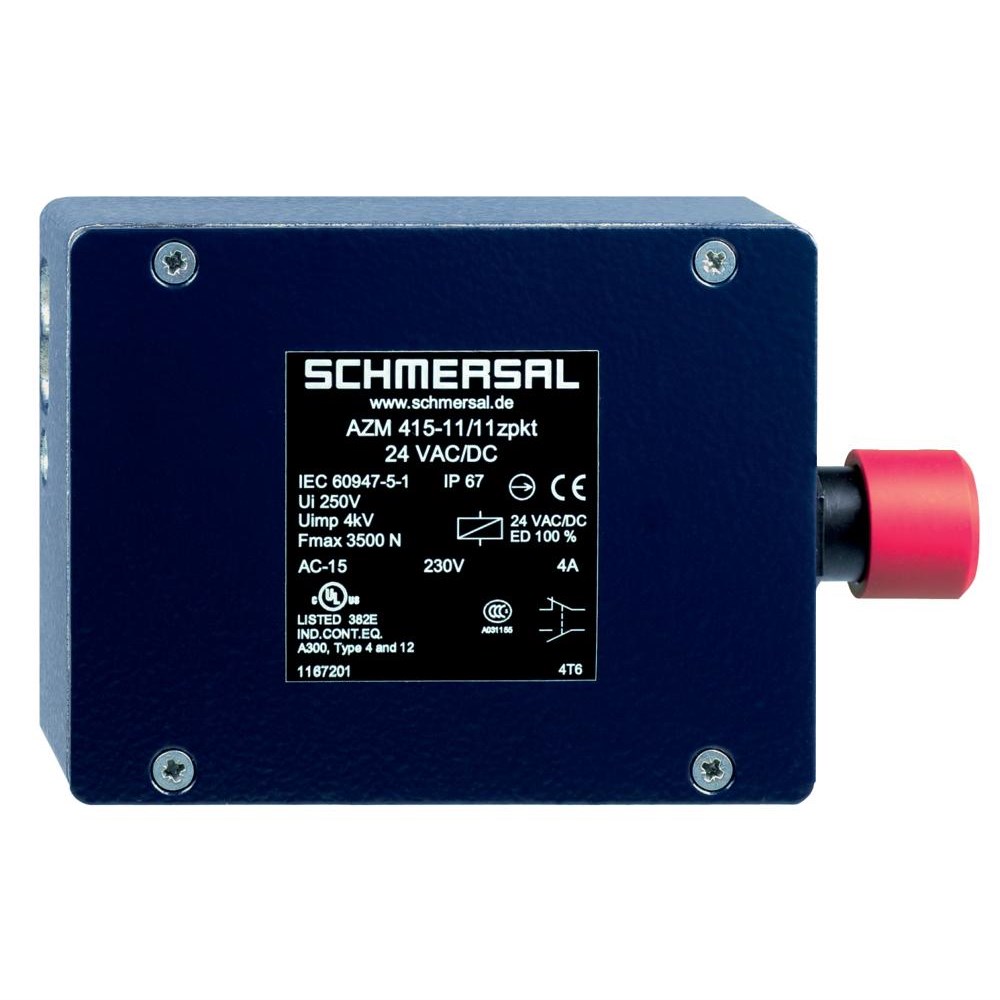

Schmersal 101168224 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101168224

  • Operates at 24 VAC/VDC, 1000 A, and 10 W
  • Durable aluminium housing with IP67 protection
  • Mechanical life of up to 1 million cycles
  • Complies with cULus and UKCA standards
  • Slow action mechanism with NO+NC contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
970 g
Width
152 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67

Documents

IPD Product Catalogue V17
