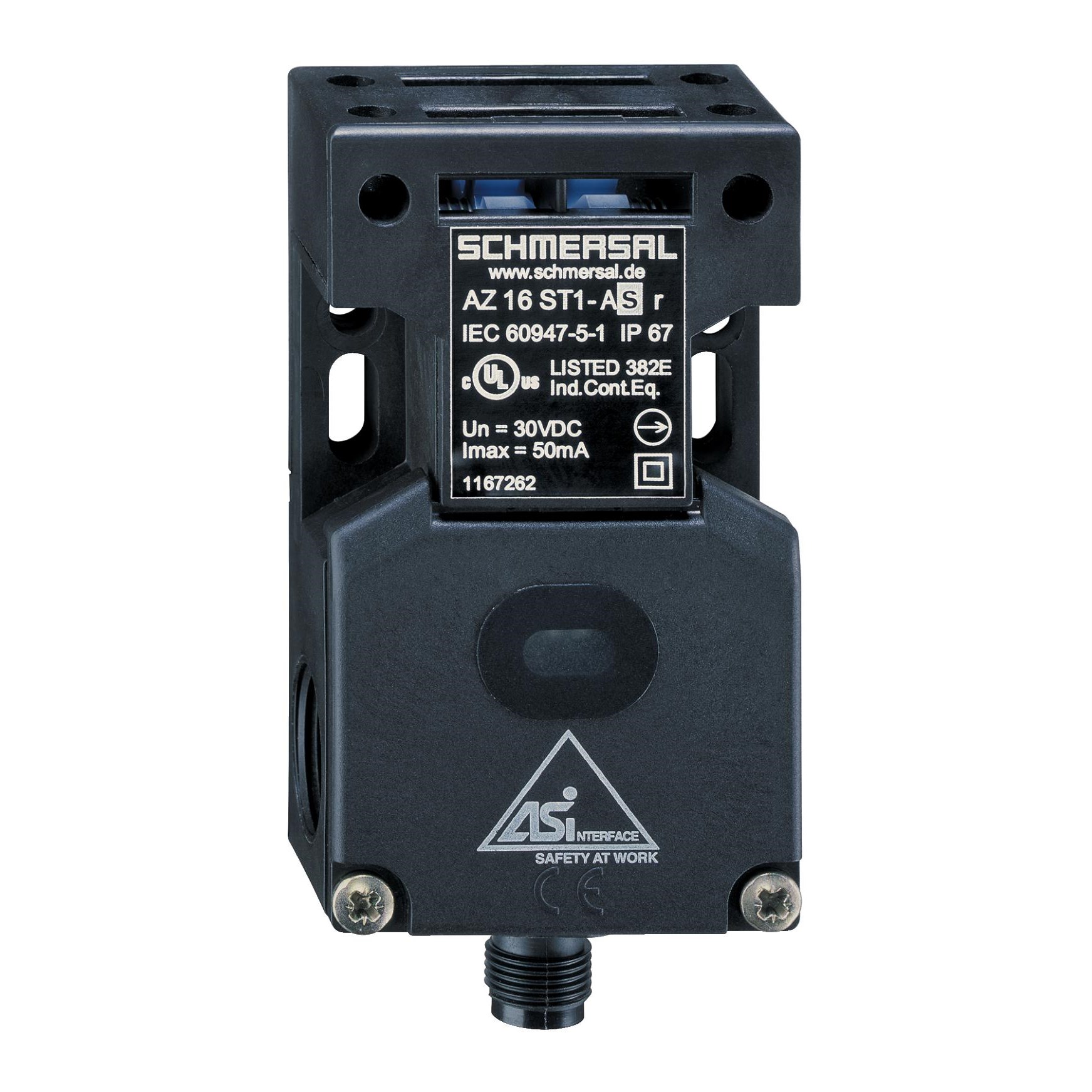

Schmersal 101167262 Safety Switch with Separate Actuator 32VDC

Product Code: 101167262

  • Durable thermoplastic housing
  • High protection with IP67 rating
  • Long mechanical life: 1 million cycles
  • Compact size: 30mm x 52mm x 90mm
  • Operates in -25 to 60°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator (As - Interface)
Brand
Schmersal
Series
AZ 16

Electrical

Terminal Type
Connector plug M12, 4-pole, (A-coding)

Mechanical

Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
90mm
Weight
0.115kg
Width
52mm

Environmental

Operating Temperature
-25°C to 60°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
