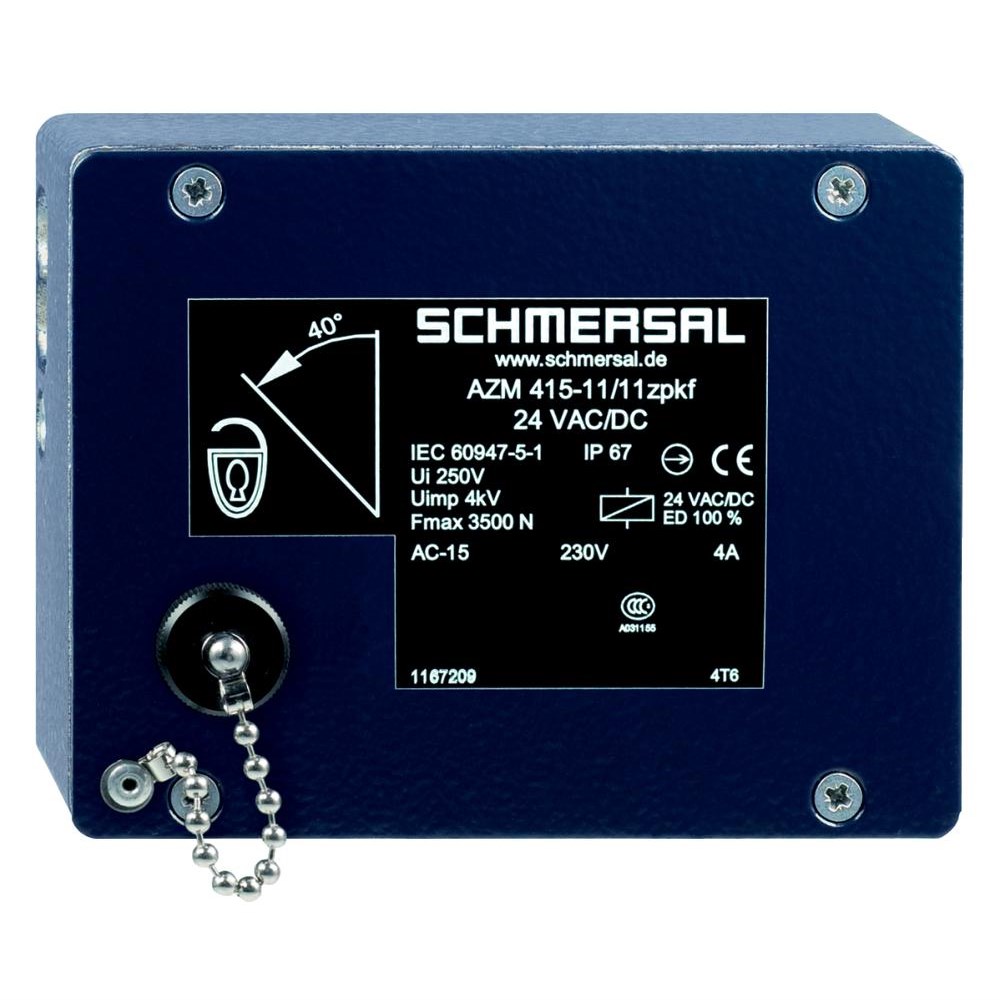

Schmersal 101167210 Solenid Interlock Switch 110VAC NO+NC

Product Code: 101167210

  • Durable aluminium housing, IP67 protection
  • Operates in -25 to 50°C range
  • Slow action with NO+NC contacts
  • High mechanical life: 1 million cycles
  • Complies with cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
110 V AC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
56.5 mm
Height
100 mm
Weight
915 g
Width
141 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
