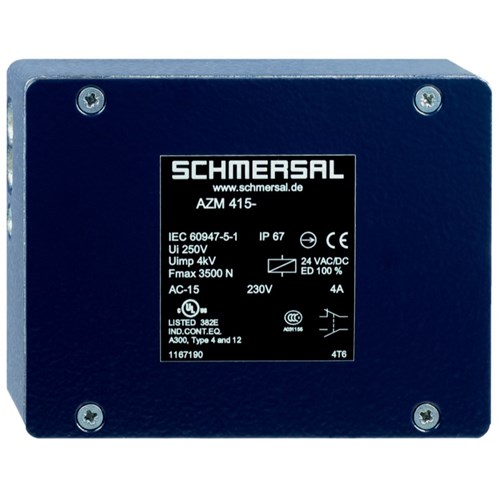

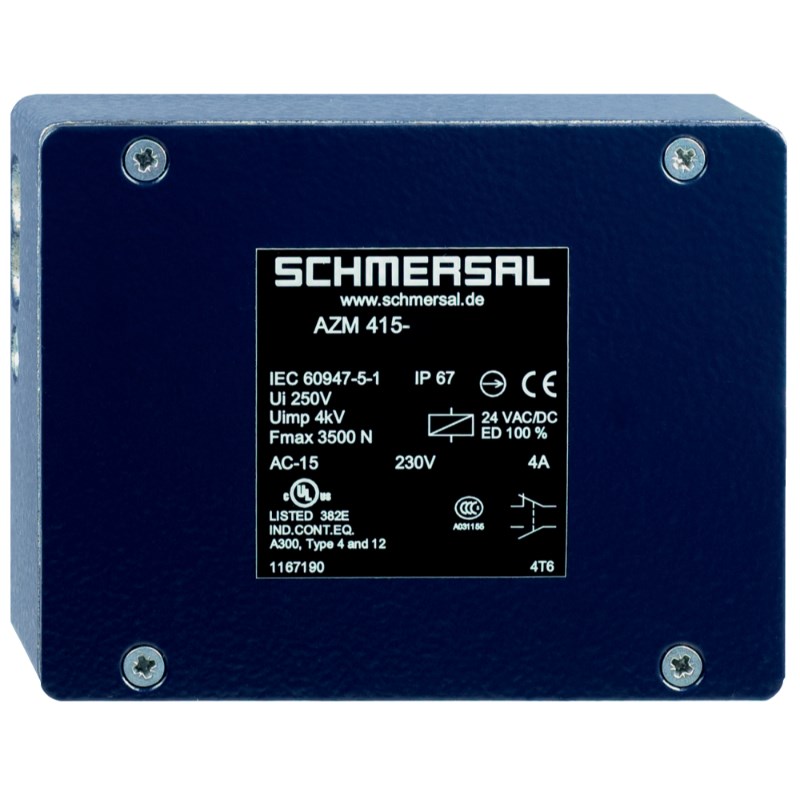

Schmersal 101167208 Solenid Interlock Switch 230VAC NO+NC

Product Code: 101167208

  • Rated for 230 VAC, 1000 A, 10 W
  • Durable aluminium housing with IP67 protection
  • NO+NC contact config with silver contacts
  • Operates in -25 to 50°C range
  • Certified by cULus and UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
230 V AC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
910 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
