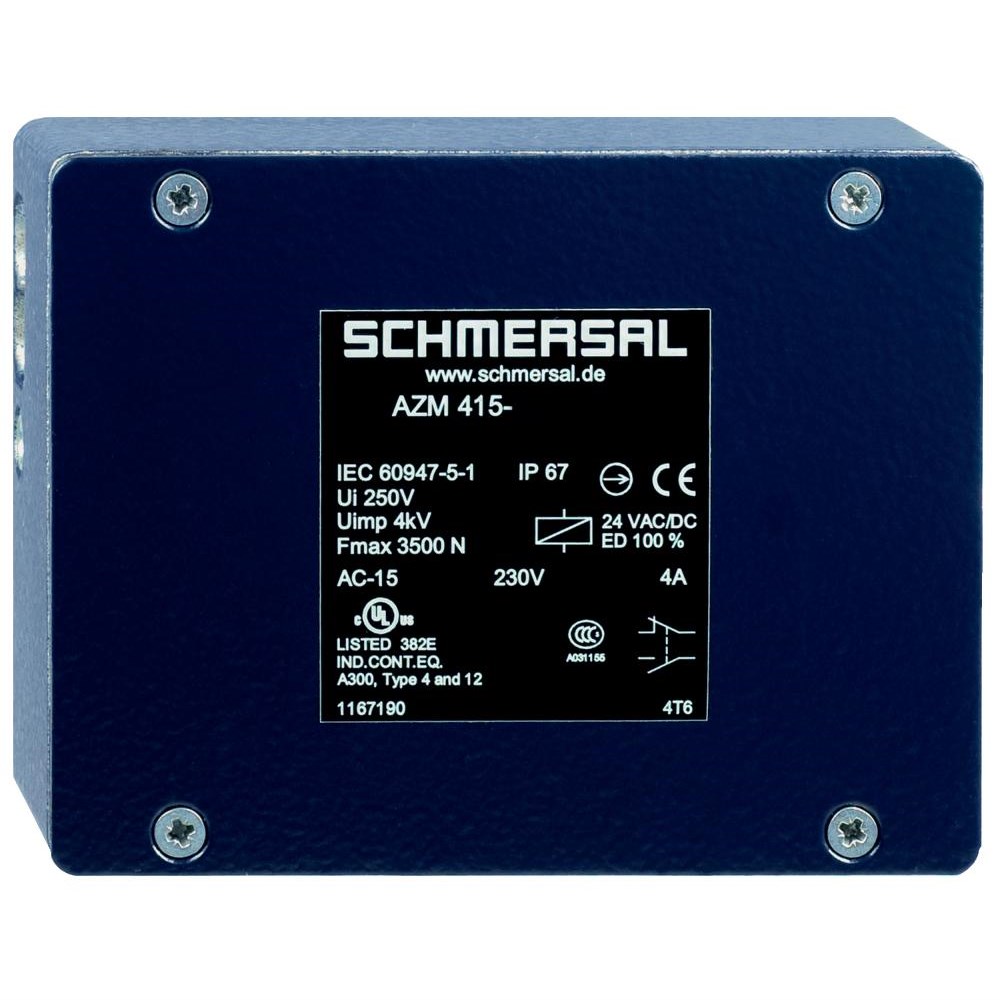

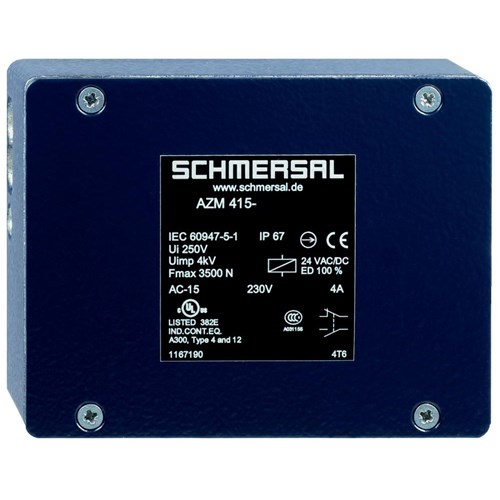

Schmersal 101167205 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101167205

  • Dual voltage: 24 VAC/VDC
  • Durable aluminium housing, IP67 rated
  • Long mechanical life: 1 million cycles
  • NO+NC contacts with slow action
  • Compact size: 33mm x 73.5mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Switching Current
4A (AC-15), 1A (DC-13)
Rated Voltage (Ur)
24V AC/ DC (control)
Terminal Type
Screw terminals
Operating Mode
Power-to-unlock

Mechanical

Cable Entry
2 × M20 × 1.5
Guard Locking Force
3500N
Housing Material
Aluminium, painted

Dimensions & Physical Data

Depth
46.5mm
Height
100mm
Weight
1kg (approx.)
Width
130mm

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 50°C
