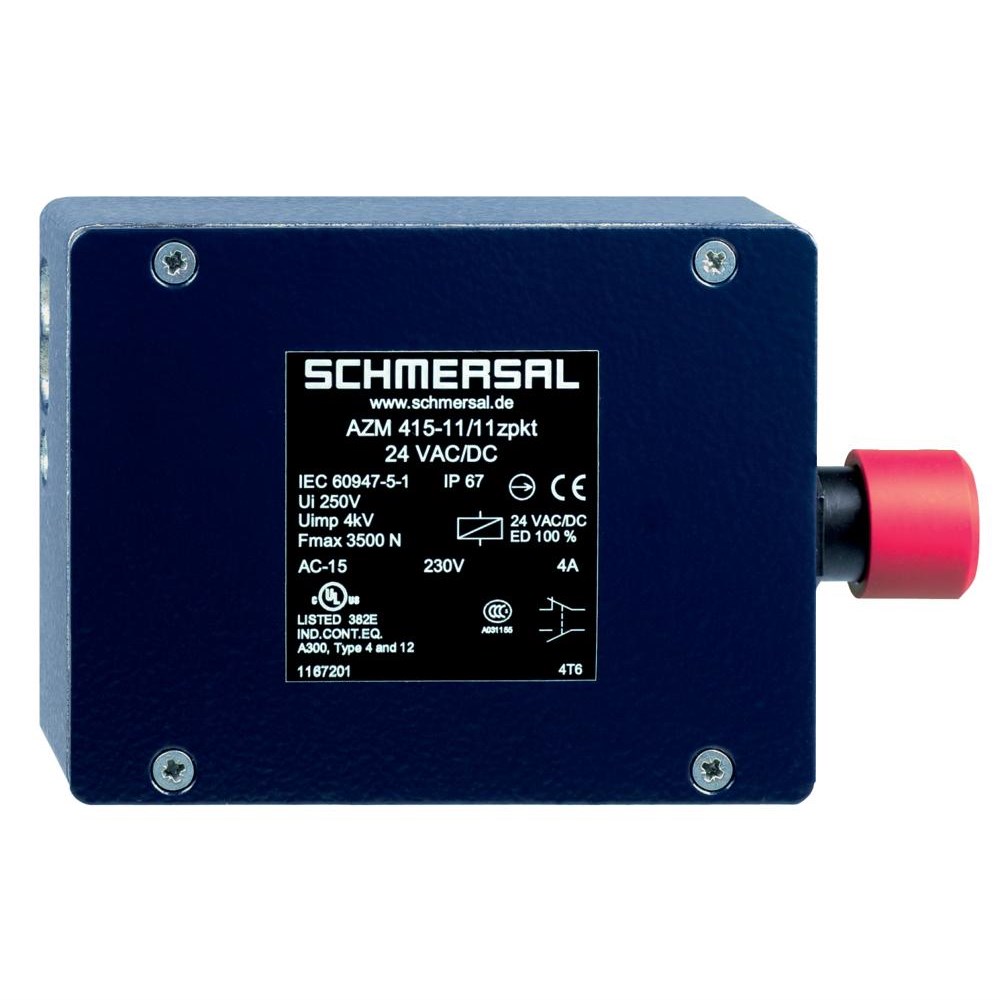

Schmersal 101167201 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101167201

  • Dual voltage: 24 VAC/VDC
  • Durable aluminium housing, IP67 protection
  • Contact config: NO+NC for flexibility
  • Long mechanical life of 1M cycles
  • Compliant with cULus, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
928 g
Width
152 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65
