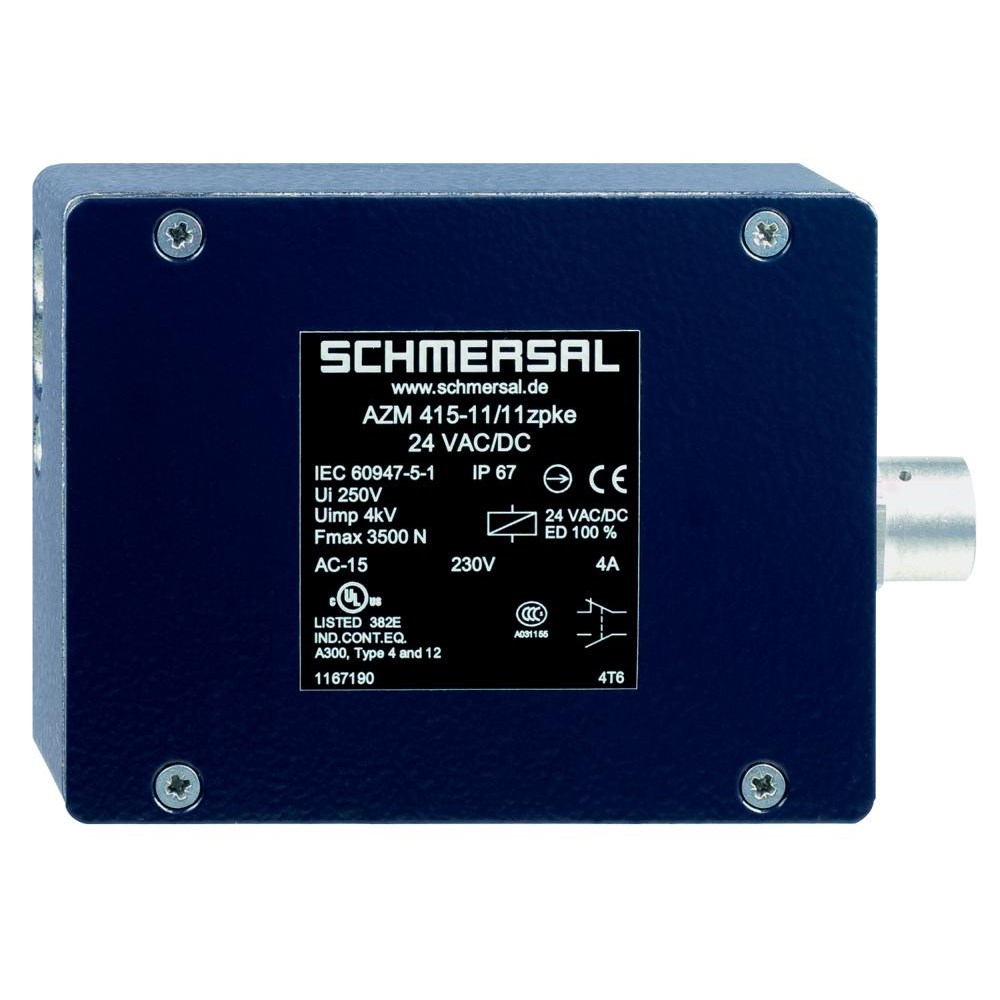

Schmersal 101167190 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101167190

  • Operates at 24 VAC/VDC, 1000 A
  • Durable with 1,000,000 cycles lifespan
  • Aluminium housing, IP67 protection
  • NO+NC contact config with silver contacts
  • Suited for -25 to 50°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
915 g
Width
141 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67

Documents

IPD Product Catalogue V17
