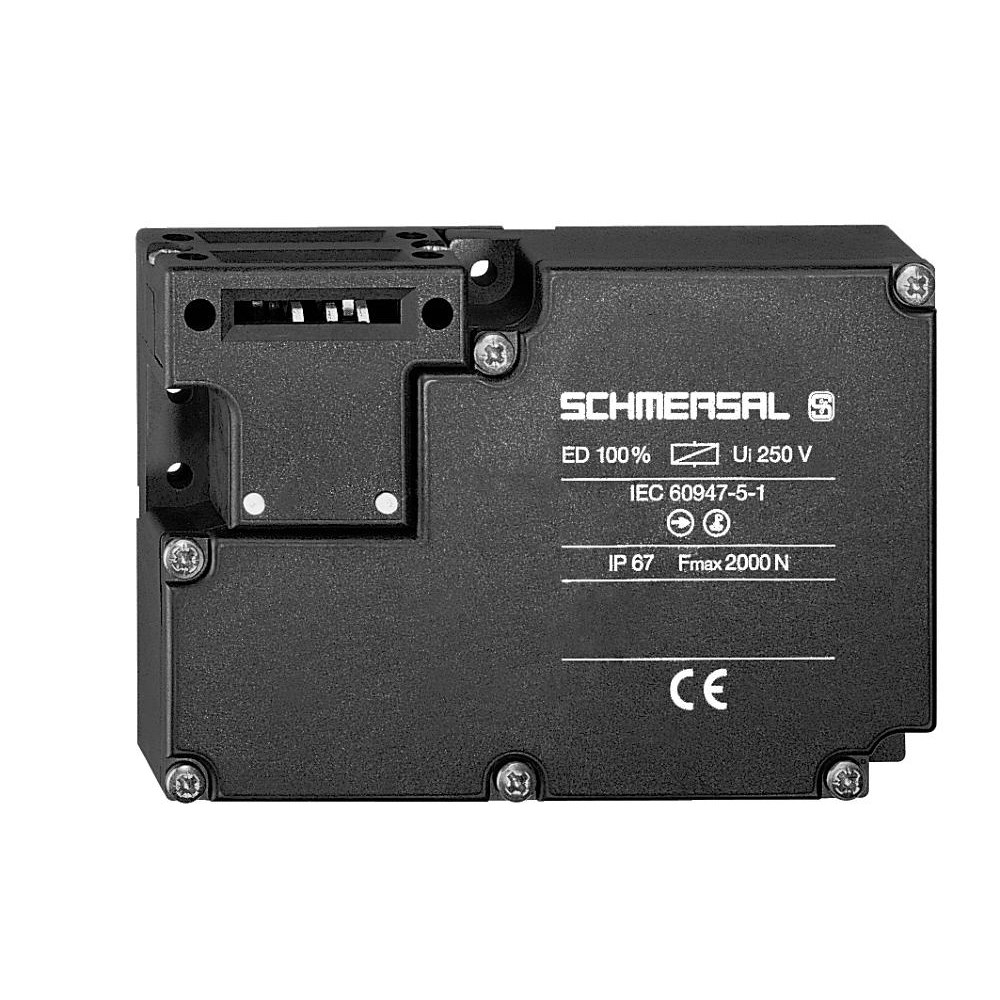

Schmersal 101166286 Solenid Interlock Switch 110/230VAC NO+NC

Product Code: 101166286

  • Operates on 110/230 VAC, 100 A
  • NO+NC contacts with slow action
  • Durable die-cast light alloy housing
  • High protection rating of IP67
  • Long mechanical life: 1 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 161

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
110 V AC; 230 V AC
Terminal Type
Screw terminals

Mechanical

Cable Entry
4 x M16 x 1.5
Guard Locking Force
2,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
415 g
Width
130 mm

Environmental

Operating Temperature
-25 to 60 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
