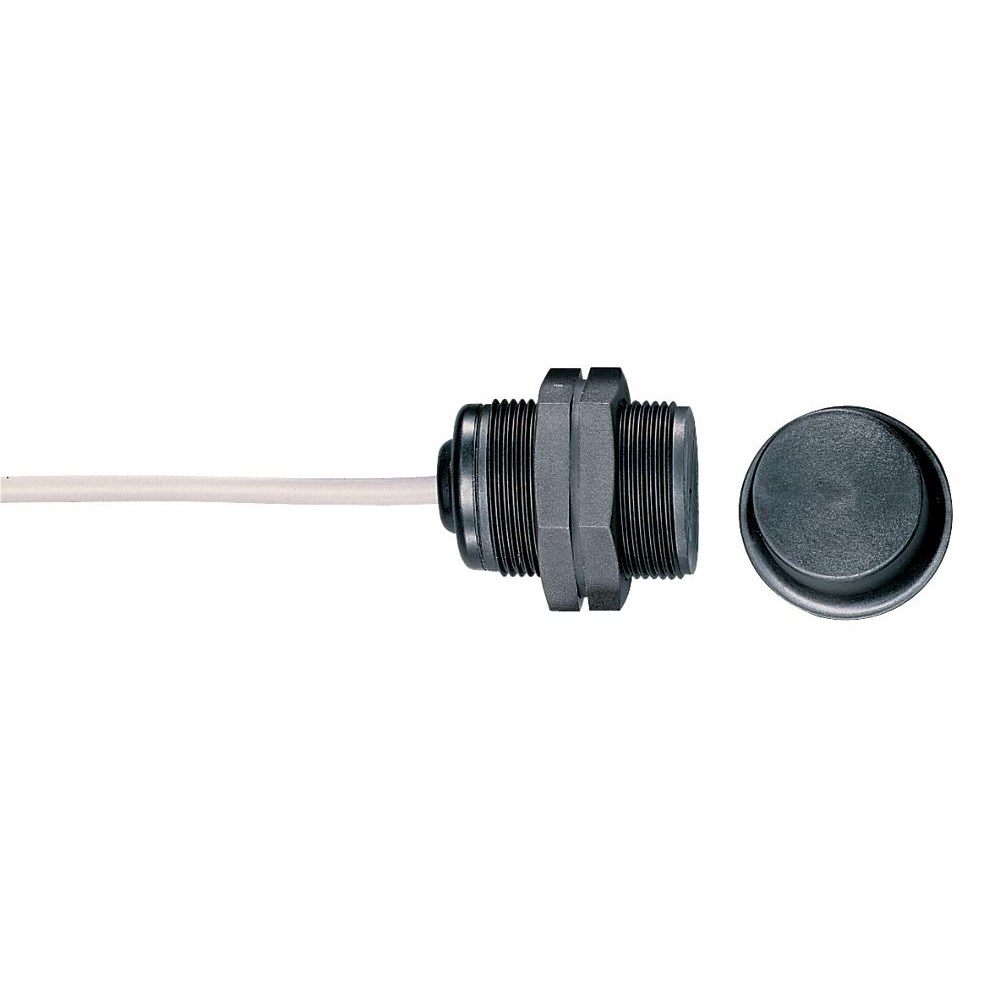

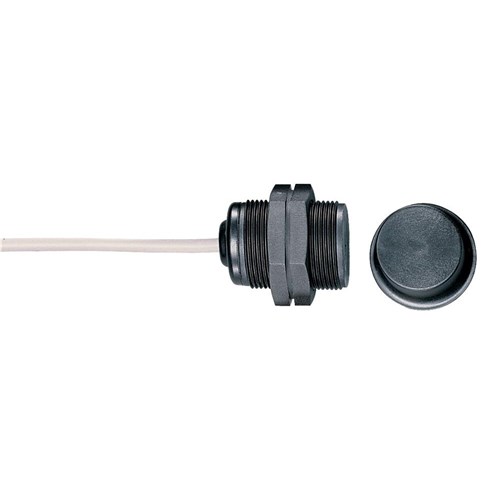

Schmersal 101166248 Magnetic Safety Sensor 1NO+2NC 5m Cable

Product Code: 101166248

  • Rated for 0.4 A and 10 W power
  • Durable glass fibre reinforced thermoplastic housing
  • Quasi-flush mounting with IP67 protection
  • Operates in temperatures from -25 to 70°C
  • Complies with EN IEC and ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 303

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A (max.switching)
Rated Voltage (Ur)
100V AC/DC (max.switching)

Mechanical

Actuator Type
BPS 300, BPS 303, BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Height
44mm (length
Weight
0.000225kg
Cable Length
5m

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
