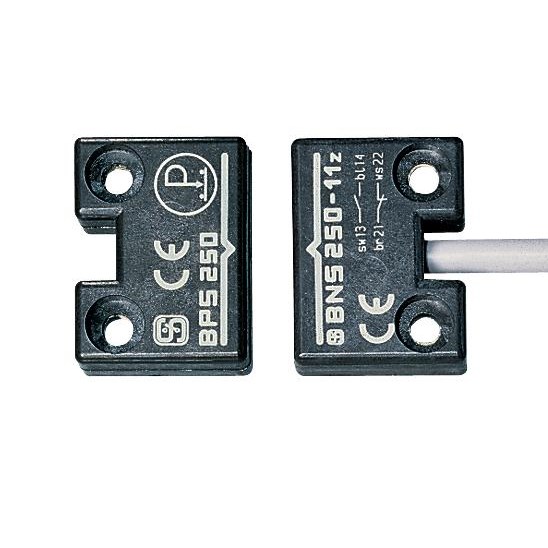

Schmersal 101165717 Magnetic Safety Sensor 5m Cable

Product Code: 101165717

  • Operates at 24 VDC and 0.1 A
  • Durable with 25 million cycles life
  • IP67 protection, robust in harsh conditions
  • Glass fibre reinforced thermoplastic housing
  • Compact size: 13x33x25 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Switching Current
Up to 4 A
Rated Current (In)
0.4A (max.switching)
Rated Voltage (Ur)
24V DC (max.switching)
Terminal Type
Connector M12, 8-pole
Actuating Direction
Front-side (face) sensing

Mechanical

Actuator Type
BPS 250

Dimensions & Physical Data

Depth
13mm (Length)
Height
25mm
Weight
0.000205kg
Width
33mm
Cable Length
5m

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C
