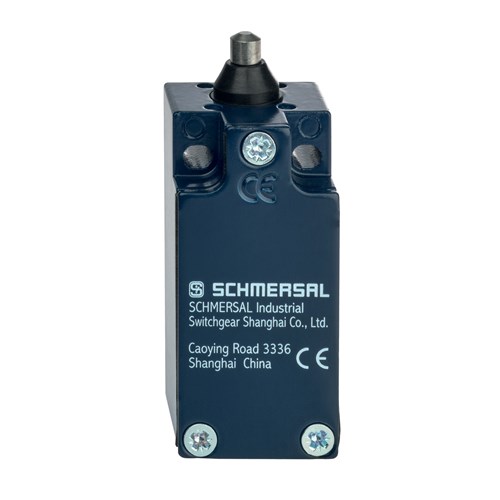

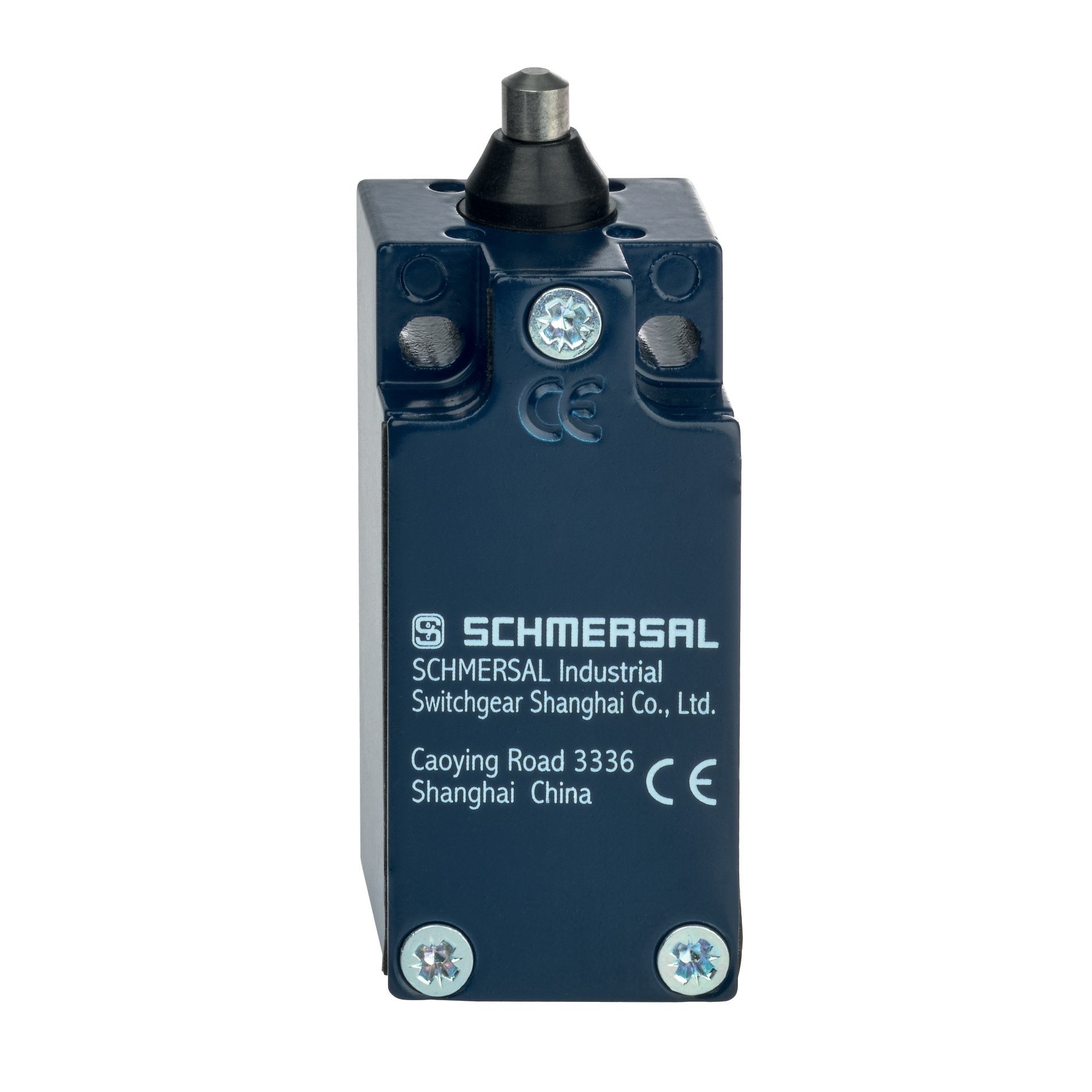

Schmersal 101165678 Position Switch with Safety Function Plunger 1NO-1NC Metal Die Cast Zinc Silver Contact

Product Code: 101165678

  • Rated for 230 VAC, 4 A
  • Durable metal, die-cast zinc housing
  • IP65/IP67 protection for harsh environments
  • Compliant with multiple international standards
  • Long mechanical life of 20 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
30mm
Height
75.5mm
Weight
0.145kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
