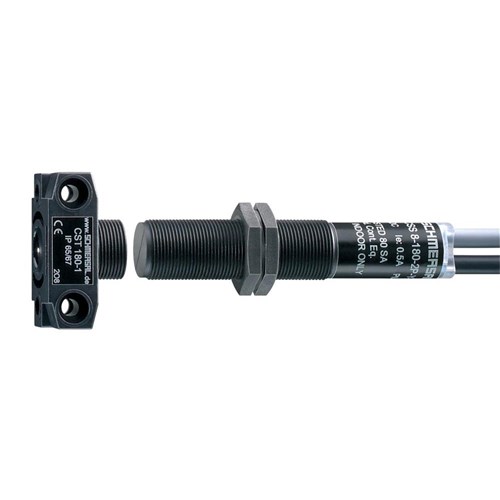

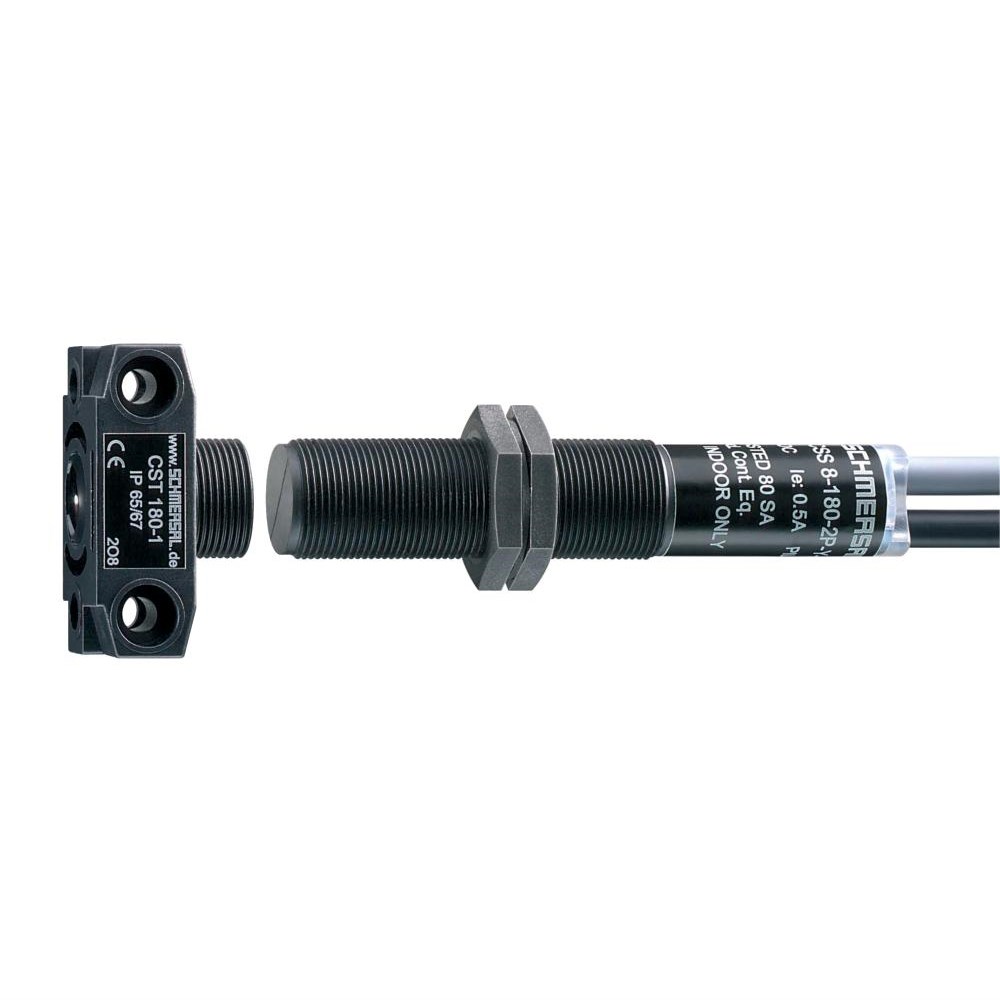

Schmersal 101165294 Electronic Safety Sensor

Product Code: 101165294

  • 24 VDC rated voltage, 1000 mA current
  • High accuracy of 0.2 mm
  • Durable glass fibre reinforced thermoplastic housing
  • IP65 and IP67 protection against dust and water
  • Complies with EN IEC 60947-5-3, EN IEC 61508 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor
Brand
Schmersal
Series
CSS 180

Electrical

Plug Type
2 × pre-wired cable, 4-pole
Rated Current (In)
1,000mA
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
CST 180-1, CST 180-2
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Height
92mm
Weight
0.167kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 60°C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
