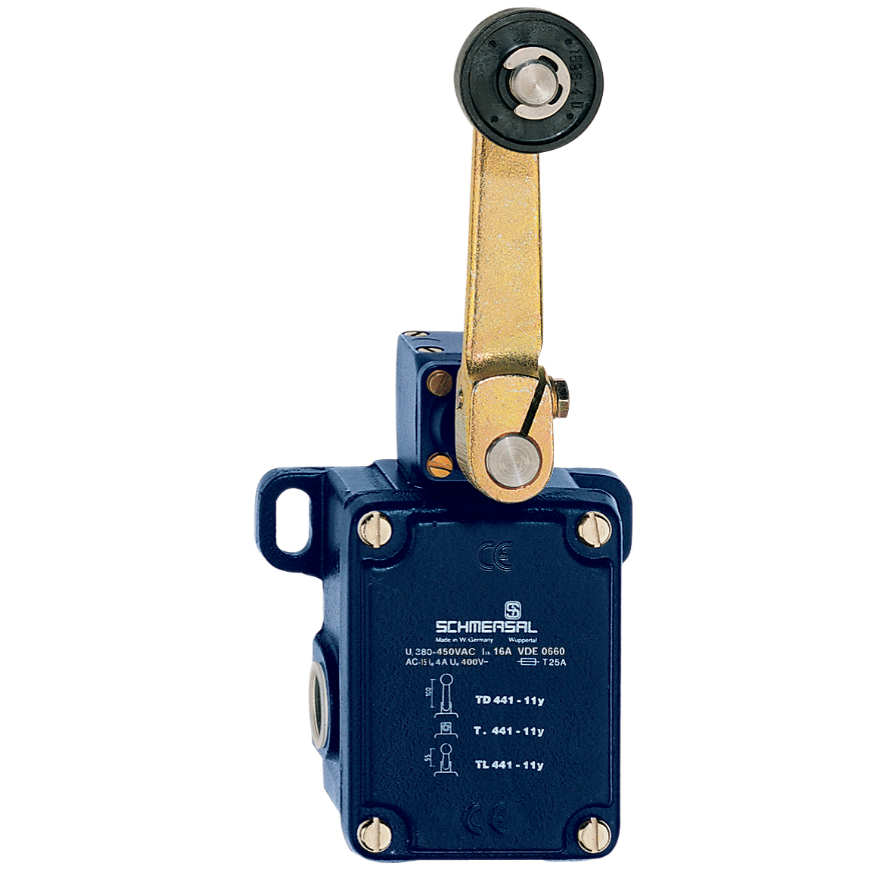

Schmersal 101165102 Position Switch Roller Lever 1NO-1NC Aluminium Silver Contact

Product Code: 101165102

  • Medium duty switch, 250 VAC, 4 A
  • Durable aluminium housing, IP65 rated
  • Snap action with roller lever actuator
  • Long mechanical life: 5 million operations
  • Complies with CCC, ENIEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 roller lever D

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Aluminium

Dimensions & Physical Data

Depth
63mm
Height
237mm
Weight
0.99kg
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
