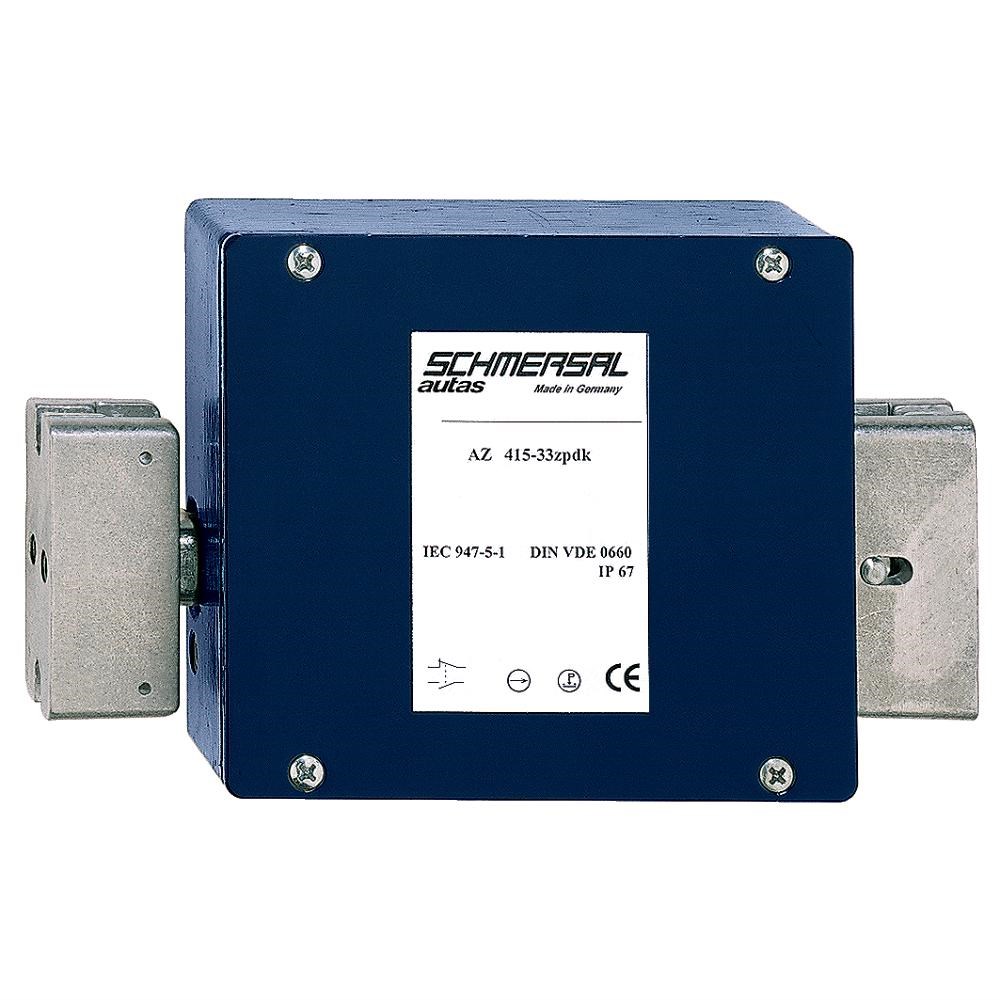

Schmersal 101164611 Safety Switch with Separate Actuator 230VAC 1NO+1NC

Product Code: 101164611

  • Rated voltage of 230 VAC, current of 4 A
  • Durable with 1 million mechanical cycles
  • Robust aluminium housing, IP67 protection
  • Operates in -25 to 80°C temperature range
  • Complies with cULus and EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator (Twin - Switch)
Brand
Schmersal
Series
AZ 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
3
Terminal Type
Screw terminals M20 x 1.5

Mechanical

Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5mm
Height
125mm
Weight
1,045g
Width
141mm

Environmental

Operating Temperature
-25°C to 80°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
