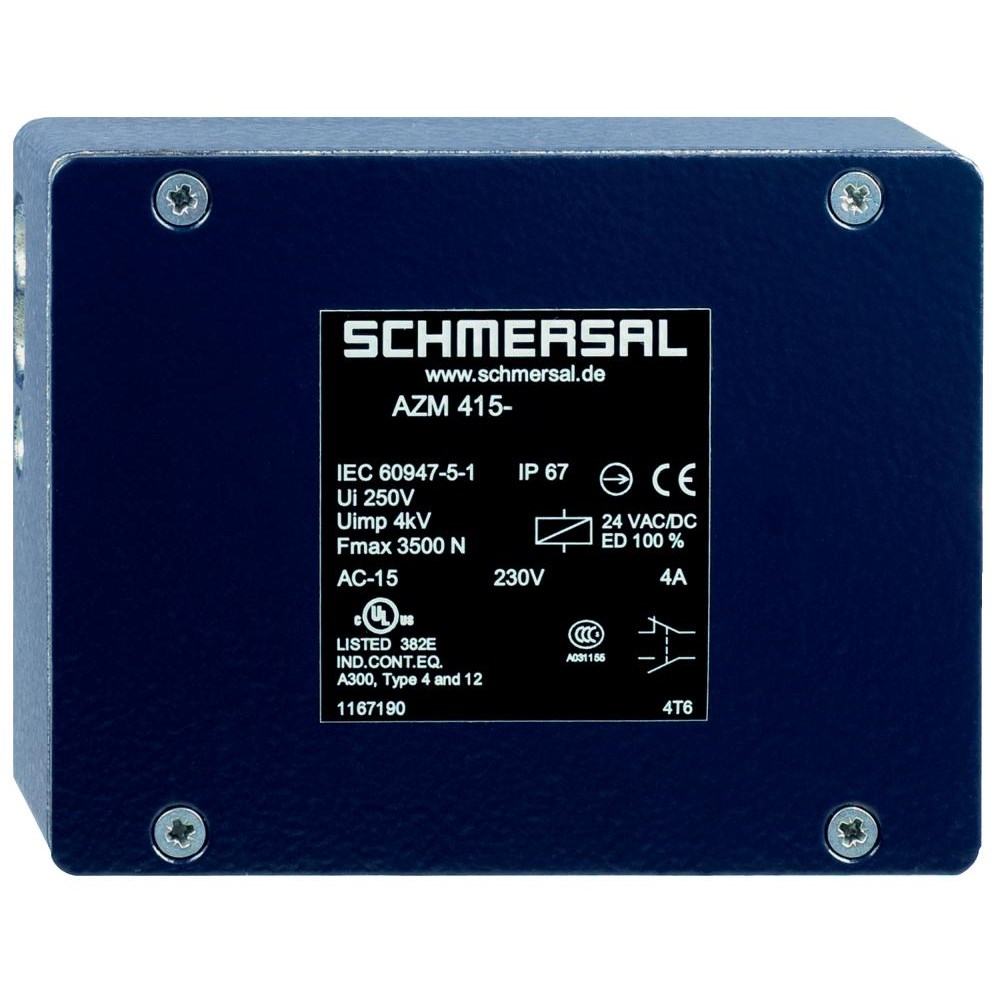

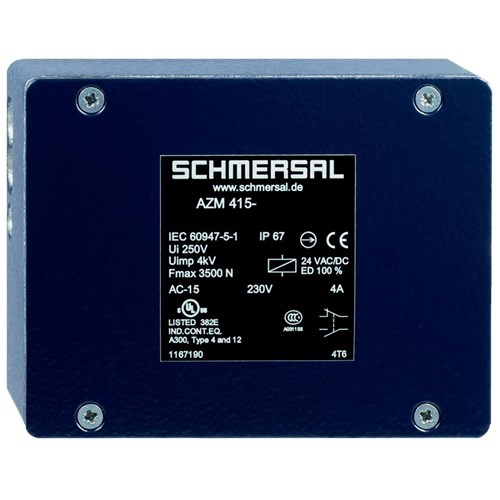

Schmersal 101164463 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101164463

  • Rated for 24 VAC/VDC, 4 A
  • Durable aluminium housing, IP67 rated
  • Mechanical life of 1 million cycles
  • Slow action with NO+NC contacts
  • Complies with cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

Rated Current (In)
0.25

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
920 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
