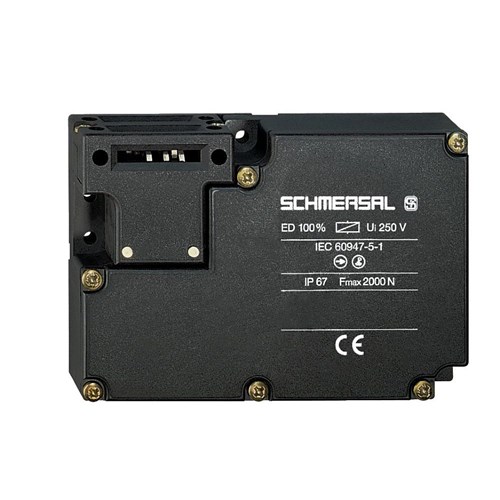

Schmersal 101164207 Solenid Interlock Switch NO

Product Code: 101164207

  • Durable with 1 million mechanical cycles
  • IP67 protection for harsh environments
  • Plunger actuator with slow action
  • Compact size: 37mm L x 130mm W x 92.5mm H
  • Operates up to 75°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 161

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
2
Switching Current
4A (AC-15), 2.5A (DC-13)
Switching Voltage
230 VAC (AC-15), 24V DC (DC-13)
Rated Voltage (Ur)
24V AC/ DC (control)
Terminal Type
Screw terminals
Operating Mode
Power-to-unlock

Mechanical

Actuator Type
Separate actuator
Cable Entry
4 × M16 × 1.5
Guard Locking Force
2000N
Housing Material
Glass-fibre reinforced thermoplastic

Dimensions & Physical Data

Depth
30mm
Height
90mm
Weight
0.45kg (approx.)
Width
130mm

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 60°C

Documents

IPD Product Catalogue V17
