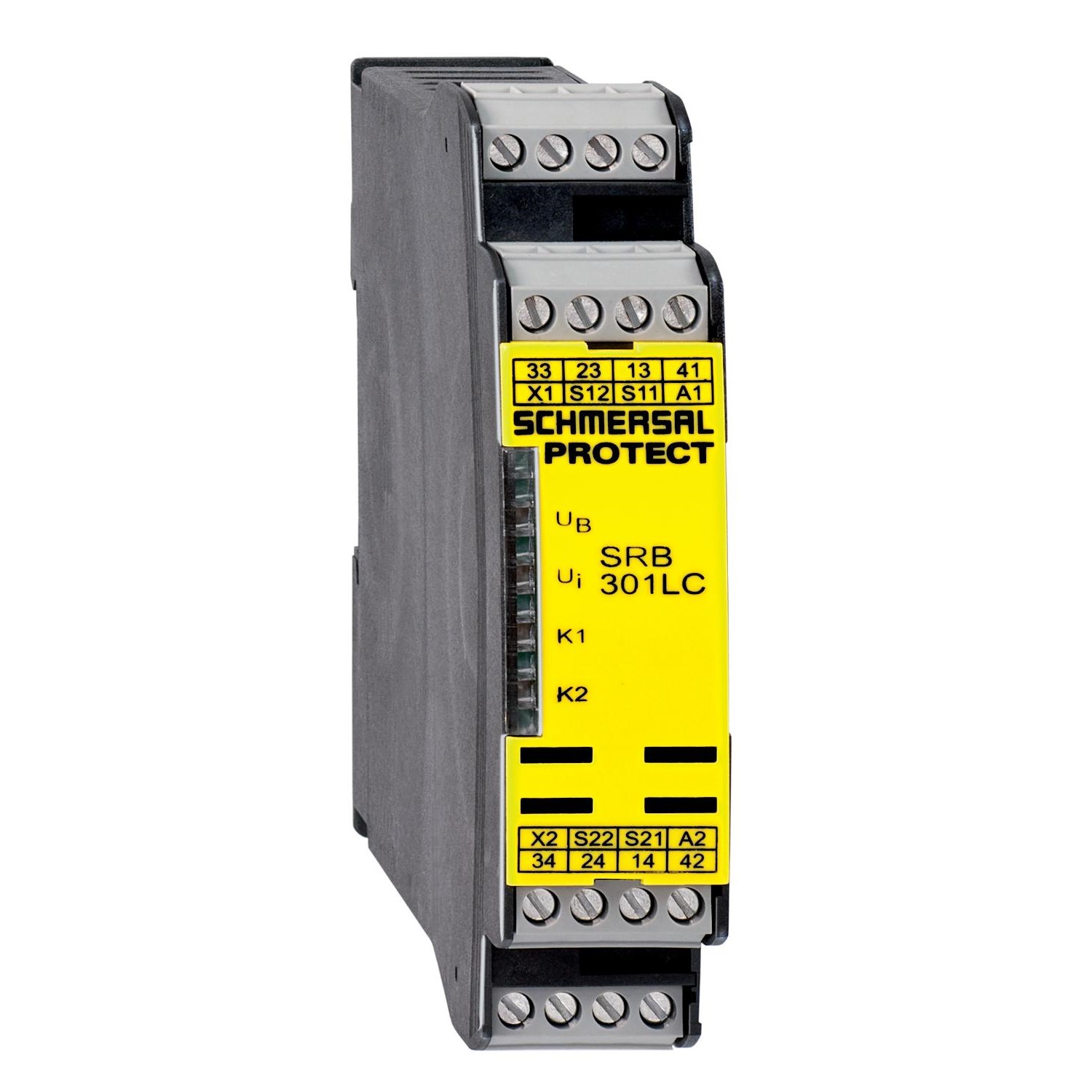

Schmersal 101163475 Safety Relay Module 24VDC NC

Product Code: 101163475

  • Compact 32.5mm x 119mm sensor size
  • Durable plastic with reinforced glass fibre housing
  • IP20 protection for indoor use
  • Long mechanical life of 1,000,000 cycles
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay
Brand
Schmersal
Series
SRB

Electrical

Switching Current
Up to 8 A
Switching Voltage
Up to 250 V AC
Supply Voltage
24V AC/DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic

Dimensions & Physical Data

Depth
121mm
Height
100mm
Weight
0.25kg
Width
22.5mm

Environmental

IP Rating
IP40 (housing), IP20 (terminals)
Ambient Temperature
-25°C to 45°C

Safety, Standards & Compliance

Auxiliary Relay Outputs
1 auxiliary contact
Safe Relay Outputs, Stop 0
3 NO
Safety Integrity Level
SIL 3
Monitoring Circuit
Magnetic safety sensors
Performance Level
PL e
