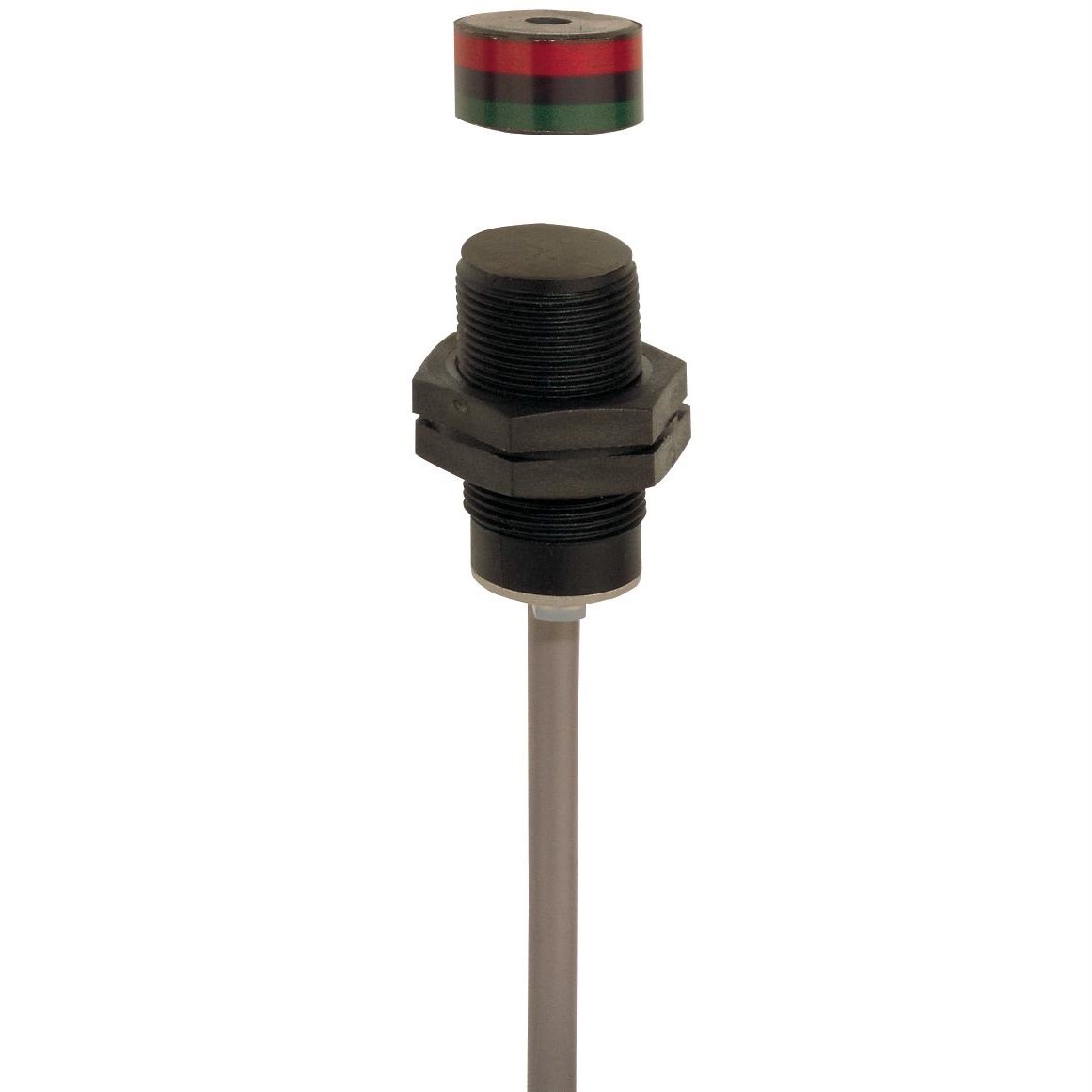

Schmersal 101161469 Magnetic Safety Sensor 1NO+2NC 10m Cable

Product Code: 101161469

  • Rated for 0.25 A, 3 W power
  • IP67 protection, robust thermoplastic housing
  • Operates in -25 to 70°C environments
  • Quasi-flush mount with 10 m cable
  • Complies with EN IEC and ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 180

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.25A

Mechanical

Actuator Type
BP 10; BP 15 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
36mm
Weight
0.4kg
Cable Length
10m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
