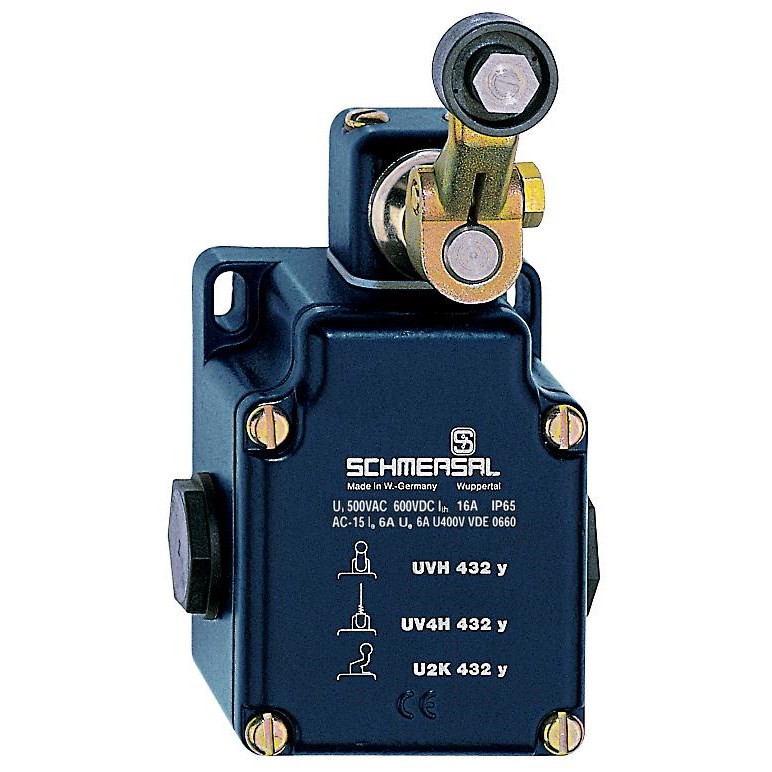

Schmersal 101161093 Position Switch Roller Lever 2NC Plastic Reinforced Glass Fibre Silver Contact

Product Code: 101161093

  • Durable plastic and reinforced glass fibre housing
  • IP65 protection for dust and water resistance
  • Operates in temperatures from -25 to 85°C
  • Roller lever actuator with slow action switching
  • Long mechanical life of up to 1 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
U 432 roller lever 8H

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
50mm
Height
138mm
Weight
0.42kg
Width
62mm

Environmental

IP Rating
IP65
Ambient Temperature
-20°C to 60°C

Documents

IPD Product Catalogue V17
