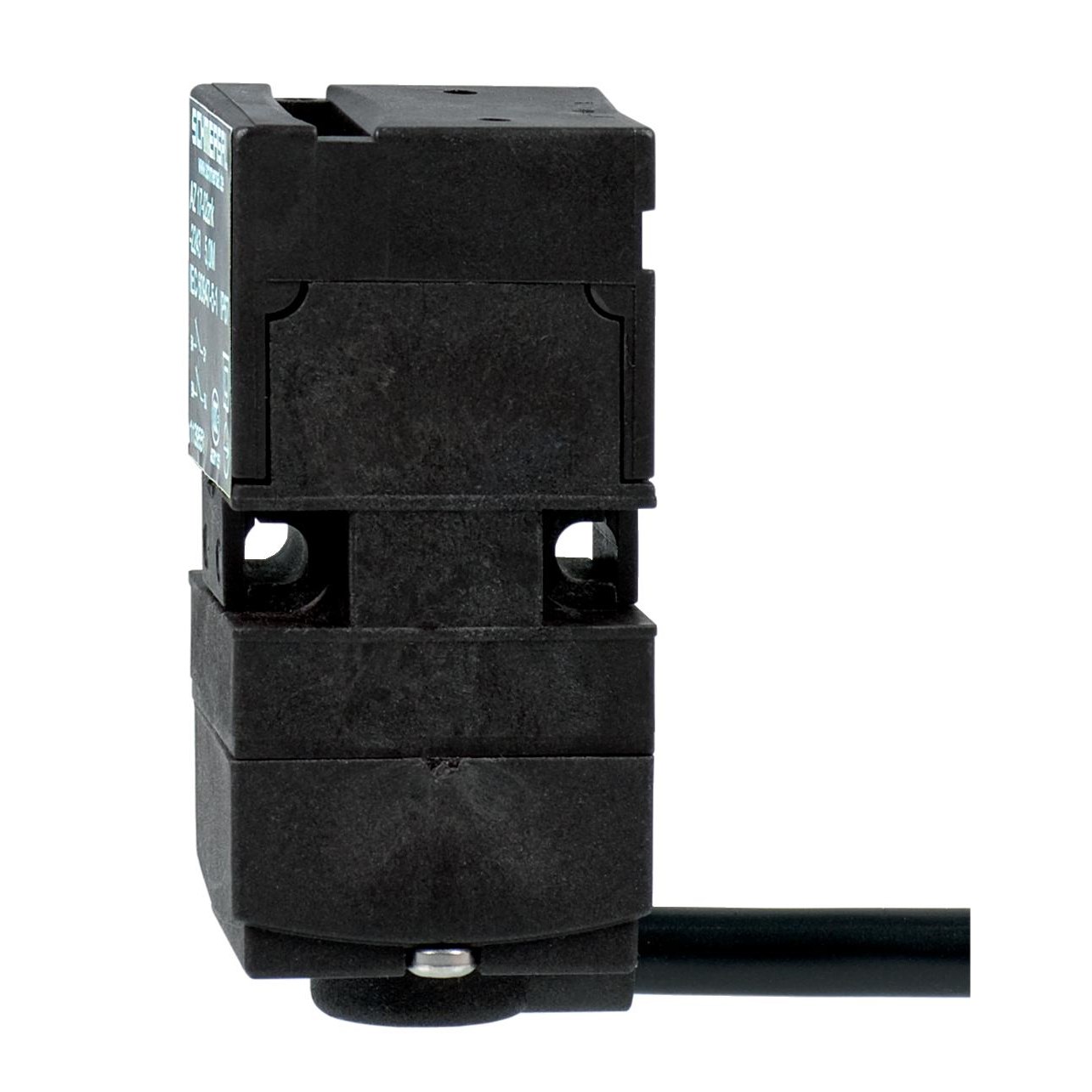

Schmersal 101159352 Safety Switch with Separate Actuator 230VAC, 24VDC 1NO+1NC 10m Cable

Product Code: 101159352

  • Operates at 230 VAC & 24 VDC, rated for 1000 A
  • Durable with mechanical life of 1 million cycles
  • IP67 protection, withstands -30 to 80°C temps
  • Features slow action with positive break NC contact
  • Compact sensor size: 30x30x65 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Pre-wired cable

Mechanical

Cable Entry
Pre-wired cable
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
65 mm
Weight
765 g
Width
30 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67
