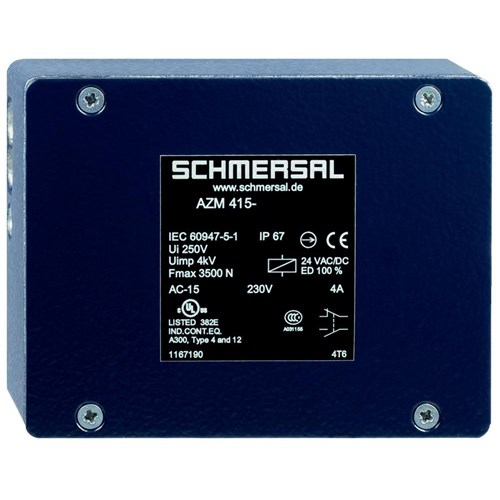

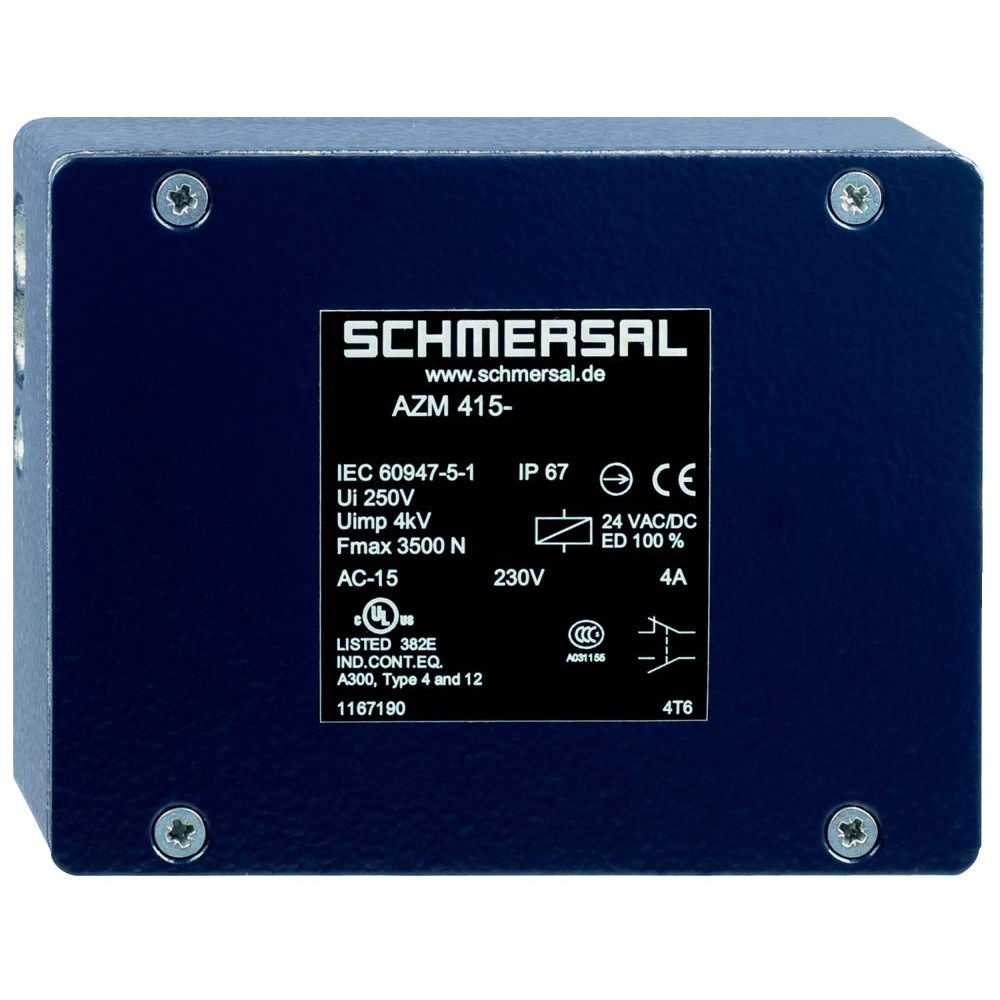

Schmersal 101156870 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101156870

  • Durable aluminium housing with IP67 protection
  • Operates at 24 VAC/VDC with 4 A current rating
  • Long mechanical life of 1 million cycles
  • Complies with cULus, CCC, UKCA standards
  • Compact size: 46.5mm x 130mm x 100mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
945 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65
