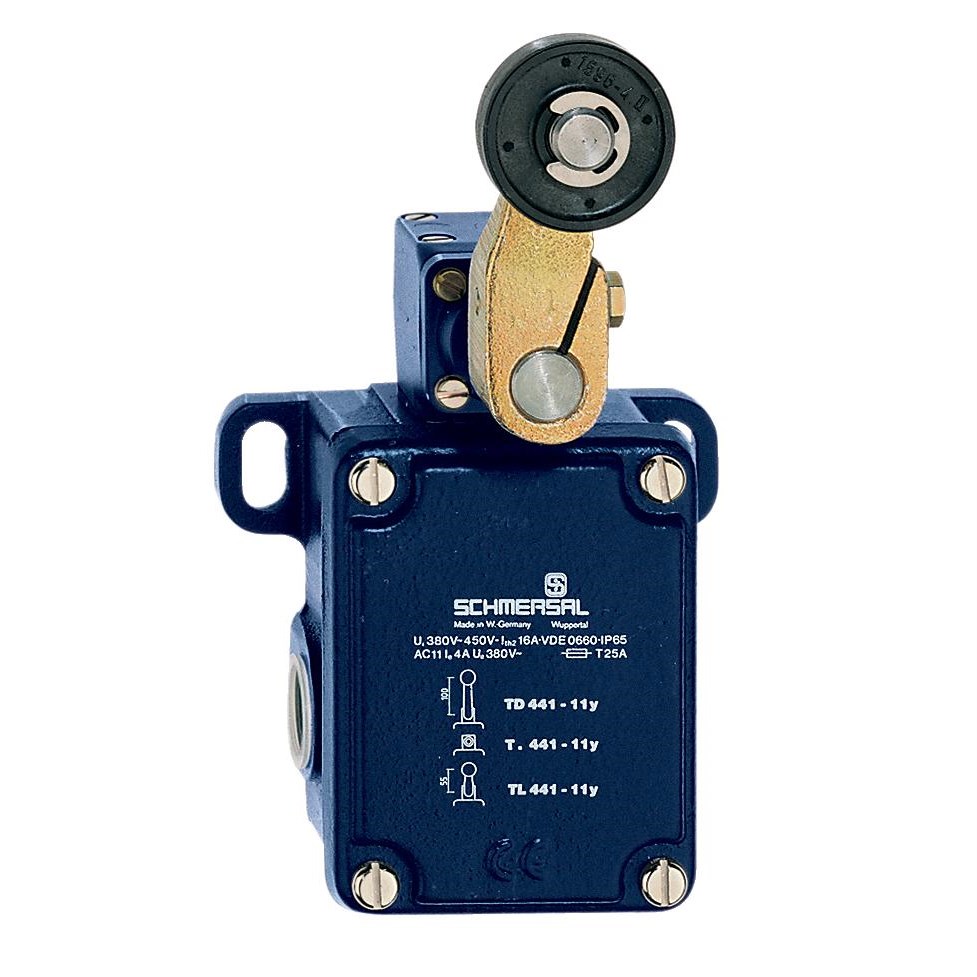

Schmersal 101150792 Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Gold Plated Silver Contact

Product Code: 101150792

  • Rated current of 4A
  • IP65 protection for dust and water resistance
  • Roller lever actuator with slow action switching
  • Durable grey cast iron housing, galvanized finish
  • Gold plated silver contacts for reliable connectivity
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 roller lever L

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
250V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Gold-plated silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
192mm
Weight
1,760g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
