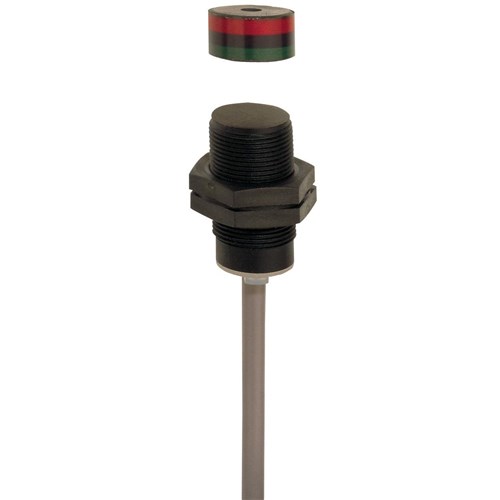

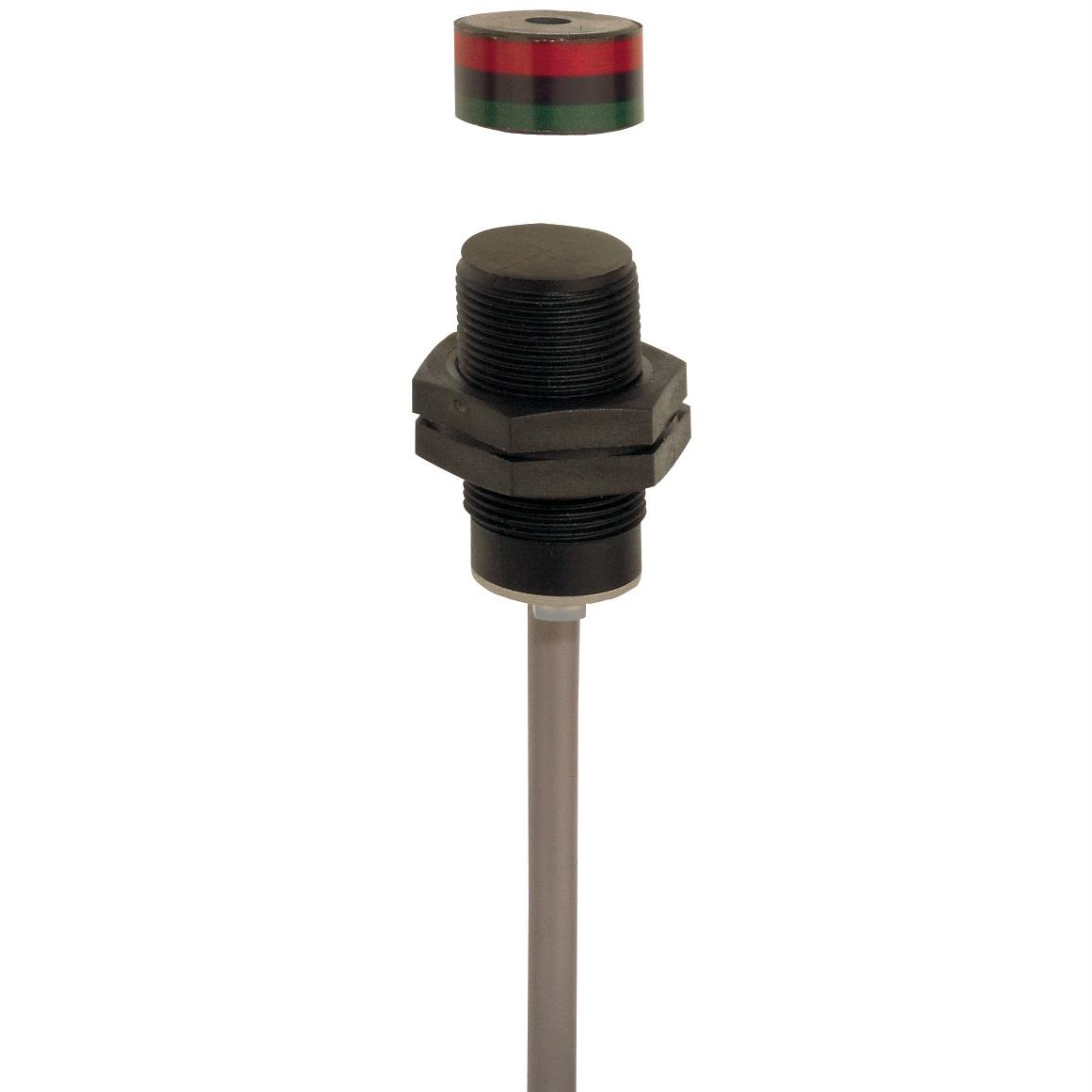

Schmersal 101150653 Magnetic Safety Sensor 13m Cable

Product Code: 101150653

  • Rated for 0.25 A, 3 W, and 5 Hz frequency
  • Durable with 25 million mechanical cycles
  • Quasi-flush mounting design
  • IP67 protection against dust and water
  • Operates in -25 to 70°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 180

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.25A

Mechanical

Actuator Type
BP 10; BP 15 SS; BP 8; BP 6
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
36mm
Weight
0.2kg
Cable Length
3m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
