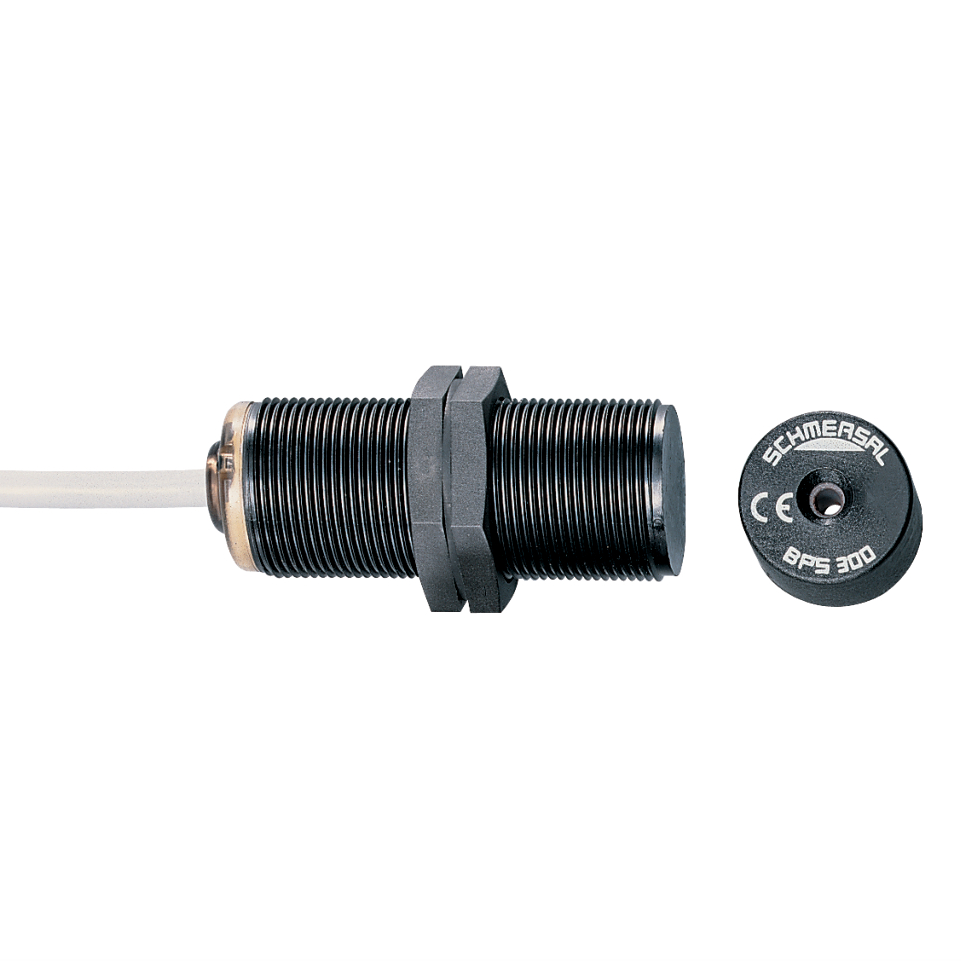

Schmersal 101150103 Magnetic Safety Sensor 1NO+1NC 4m Cable

Product Code: 101150103

  • 24 VDC, 3 A, 750 W power rating
  • Durable glass fibre reinforced housing
  • IP67 protection for harsh environments
  • Operates in -25 to 55°C range
  • Compact sensor size at 78 mm length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 300

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
0
Rated Current (In)
0.125
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
78mm
Weight
0.36kg
Cable Length
4m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
