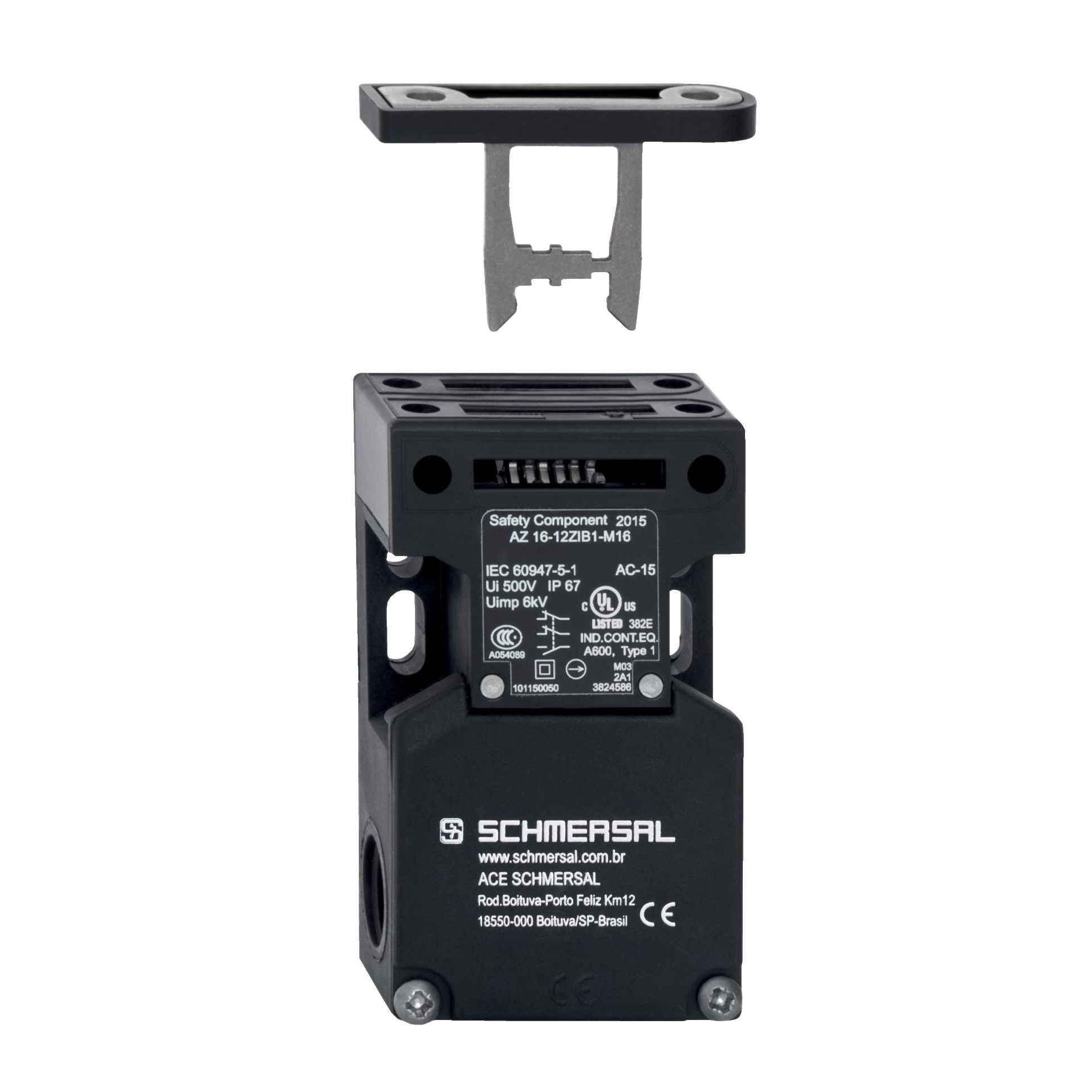

Schmersal 101150057 Safety Switch with Separate Actuator 230VAC 3NC

Product Code: 101150057

  • Operates at 230 VAC, 4A with IP67 protection
  • Durable with over 1 million mechanical cycles
  • Compact size: 30x52x90 mm for easy installation
  • Features slow action, positive break NC contact
  • Complies with cULus and EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 16

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
174 g
Width
52 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
