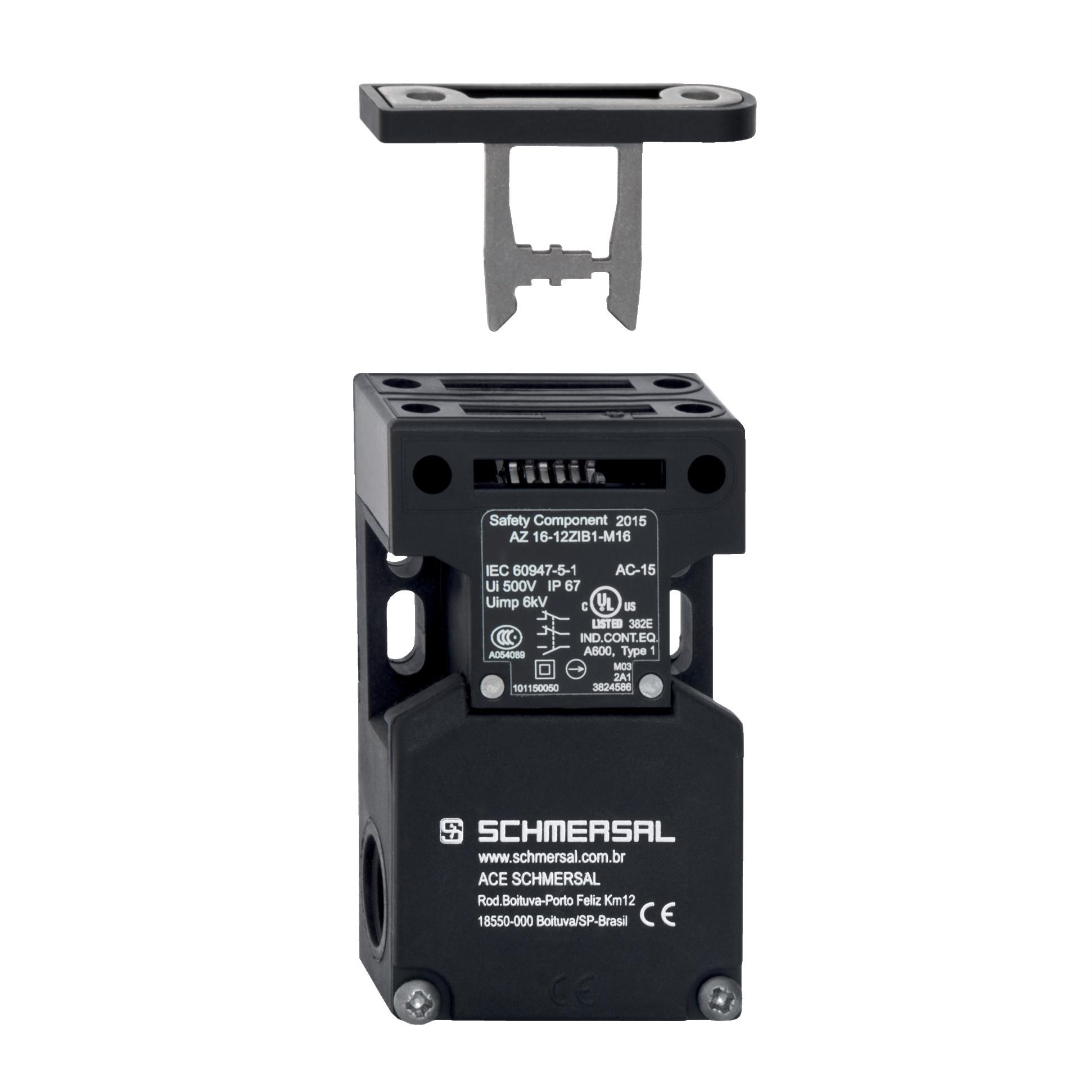

Schmersal 101150050 Safety Switch with Separate Actuator NC

Product Code: 101150050

  • High durability with 1 billion mechanical cycles
  • IP67 protection for harsh environments
  • Operates in -30 to 80°C temperature range
  • Glass fibre reinforced thermoplastic housing
  • Complies with BG-GS-ET-14, EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
158 g
Width
52 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67
