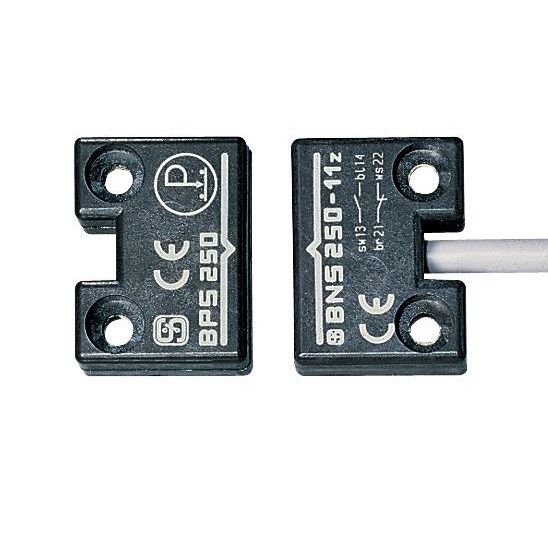

Schmersal 101149419 Magnetic Safety Sensor 1NO+1NC 6m Cable

Product Code: 101149419

  • Rated for 0.01 A, 5 Hz operation
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Magnet actuated with 1NO+1NC contact config
  • Compact sensor: 13x33x25 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 250
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.22kg
Width
33mm
Cable Length
6m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
