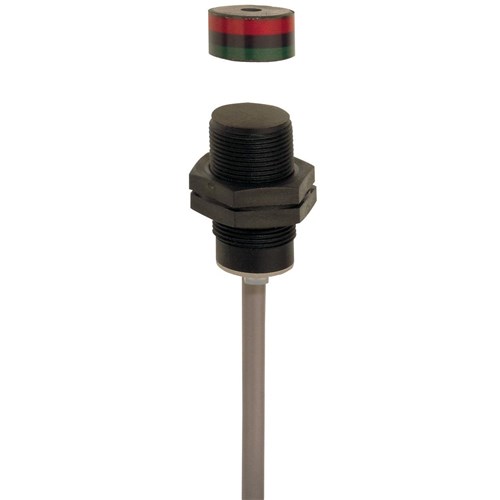

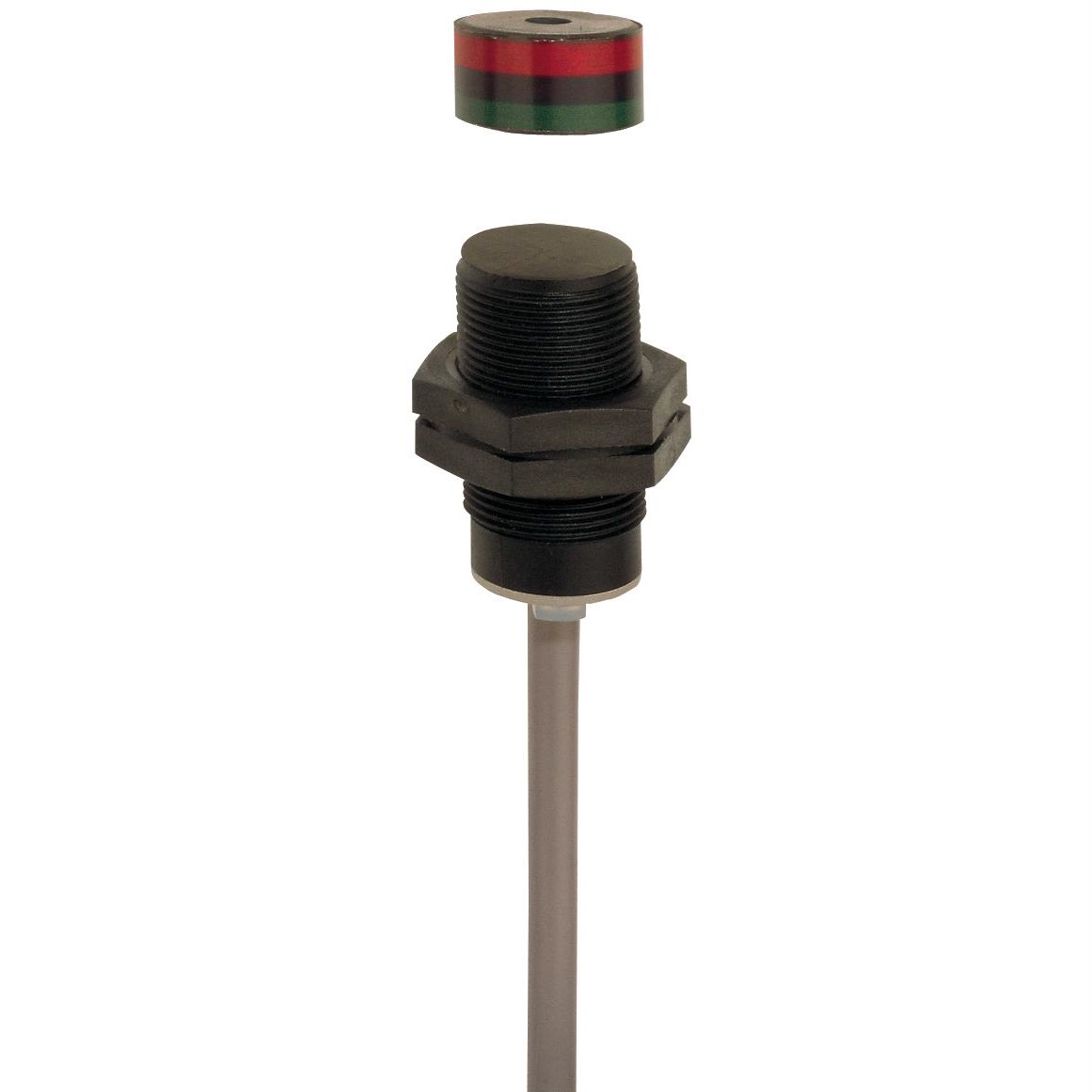

Schmersal 101149207 Magnetic Safety Sensor 1NO+2NC 1m Cable

Product Code: 101149207

  • Rated 3W power, 0.25A current
  • IP67 protection, durable design
  • Operates from -25 to 70°C
  • Compact 36mm sensor size
  • Magnet actuated switch
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 180

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.25A

Mechanical

Actuator Type
BP 10; BP 15 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
36mm
Weight
0.059kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
