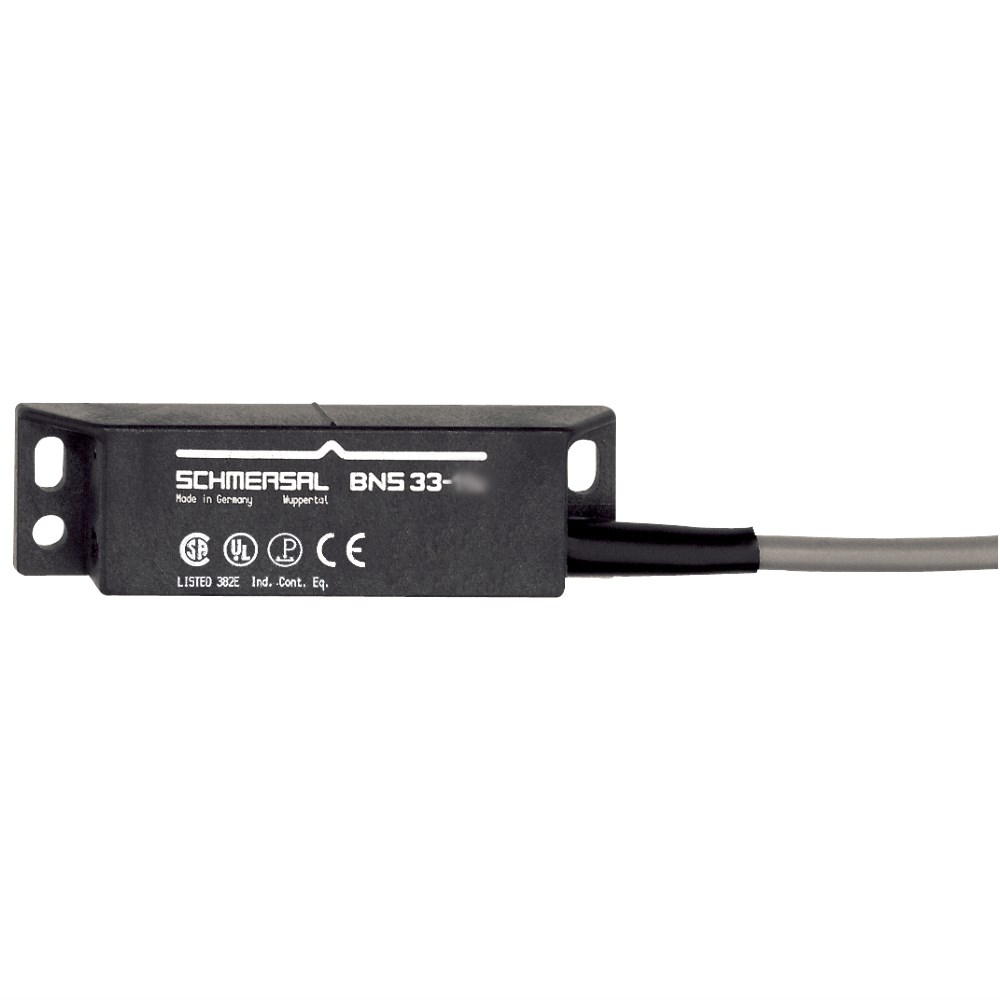

Schmersal 101148874 Safety Sensor 5m Cable

Product Code: 101148874

  • Operates at 24 VDC for efficient power use
  • Low current draw of 10 mA
  • Compact power rating of 240 mW
  • Generous 5 m cable length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.196kg
Width
88mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
