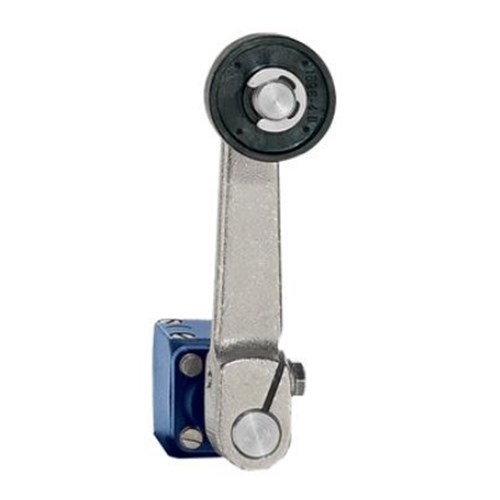

Schmersal 101148041 Position Switch

Product Code: 101148041

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
400V
Switching Principle
Slow action, double break
Utilization Category
AC-15 400 VAC / 4 A
Contact Configuration
2 NC + 2 NO
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Entry
Screw terminals; 2 x M20 cable entries
Housing Material
Grey cast iron
Actuator / Operating Element
Roller lever D; brass roller

Dimensions & Physical Data

Depth
293
Height
118
Weight
2.56kg
Width
64

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 120°C

Safety, Standards & Compliance

Standards and Approvals
DNV; EN IEC 60947-5-1
