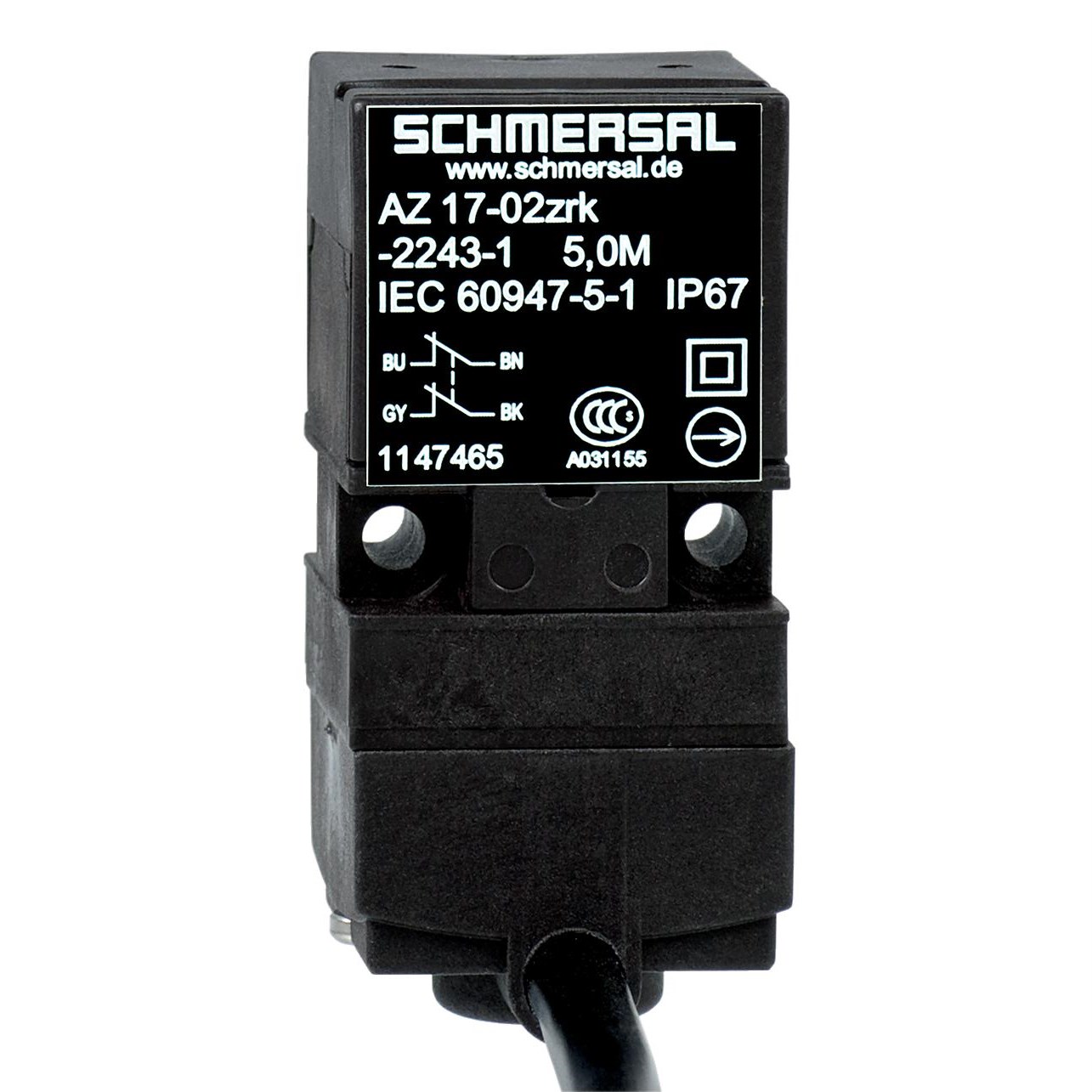

Schmersal 101147465 Safety Switch with Separate Actuator 230VAC 2NC

Product Code: 101147465

  • Rated for 230 VAC, 4 A with IP67 protection
  • Durable plastic housing with glass fibre reinforcement
  • Supports slow action, positive break NC contact
  • Operational temperature range: -30 to 80°C
  • Complies with cULus, EN ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
2
Terminal Type
Pre-wired cable

Mechanical

Cable Entry
Pre-wired cable
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
65mm
Weight
0.41kg
Width
30mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
