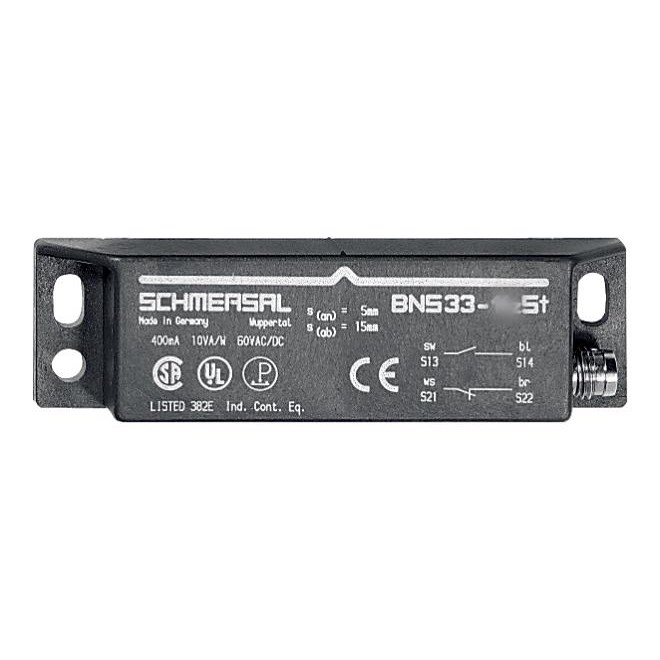

Schmersal 101146423 Magnetic Safety Sensor

Product Code: 101146423

  • Operates at 24 VDC, 0.01 A, and 0.24 W
  • Durable with 25 million mechanical cycles
  • IP67 protection for harsh environments
  • Compact size: 13x88x25 mm
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Plug Type
Connector M8
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.042kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
