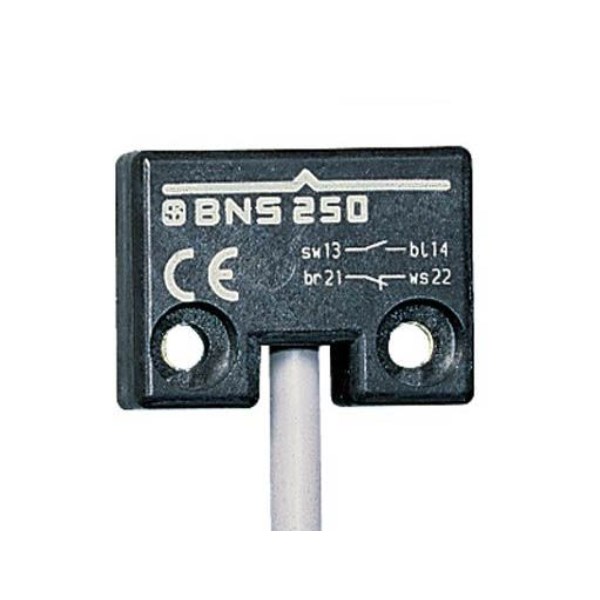

Schmersal 101145341 Magnetic Reed Switch 5m Cable

Product Code: 101145341

  • Operates at 24 VDC with 0.01 A current
  • Durable with 25 million mechanical cycles
  • IP67 rated for robust protection
  • Glass fibre reinforced thermoplastic housing
  • Compact size: 13mm x 33mm x 25mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A (max.switching)
Rated Voltage (Ur)
24V DC (max.switching)
Actuating Direction
Front-side (face) sensing

Mechanical

Actuator Type
BPS 250
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm (Length)
Height
25mm
Weight
0.000188kg
Width
33mm
Cable Length
5m

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C
