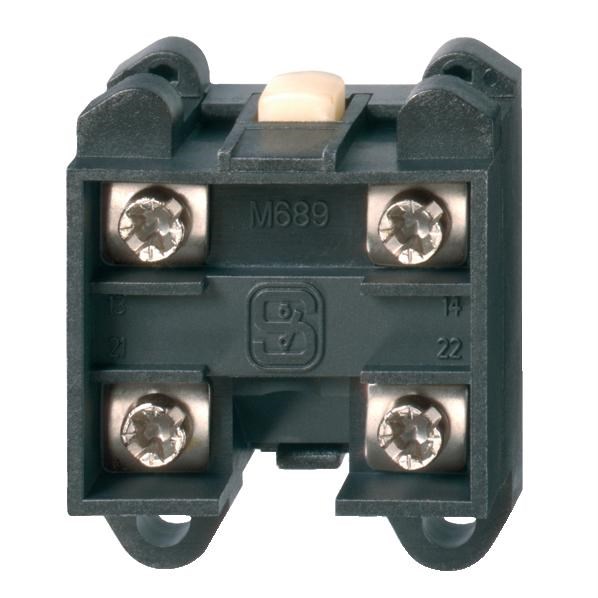

Schmersal 101144980 Micro Switch Silver Contact

Product Code: 101144980

  • Rated for 10 A current
  • High accuracy of 0.02 mm
  • IP40 protection rating
  • Snap action switching type
  • Durable thermoplastic actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Micro Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Switching Element
Change-over contact with double break with two separated contact bridges
Switching Principle
Snap action with self-cleaning contact
Terminal Type
Screw terminals
Thermal Test Current
6A

Mechanical

Actuator Type
Plunger with setting screw
Contact Material
Silver
Housing Material
Glass-fibre, reinforced thermoplastic

Environmental

IP Rating
IP40,IP00
Ambient Temperature
-30°C to 120°C
