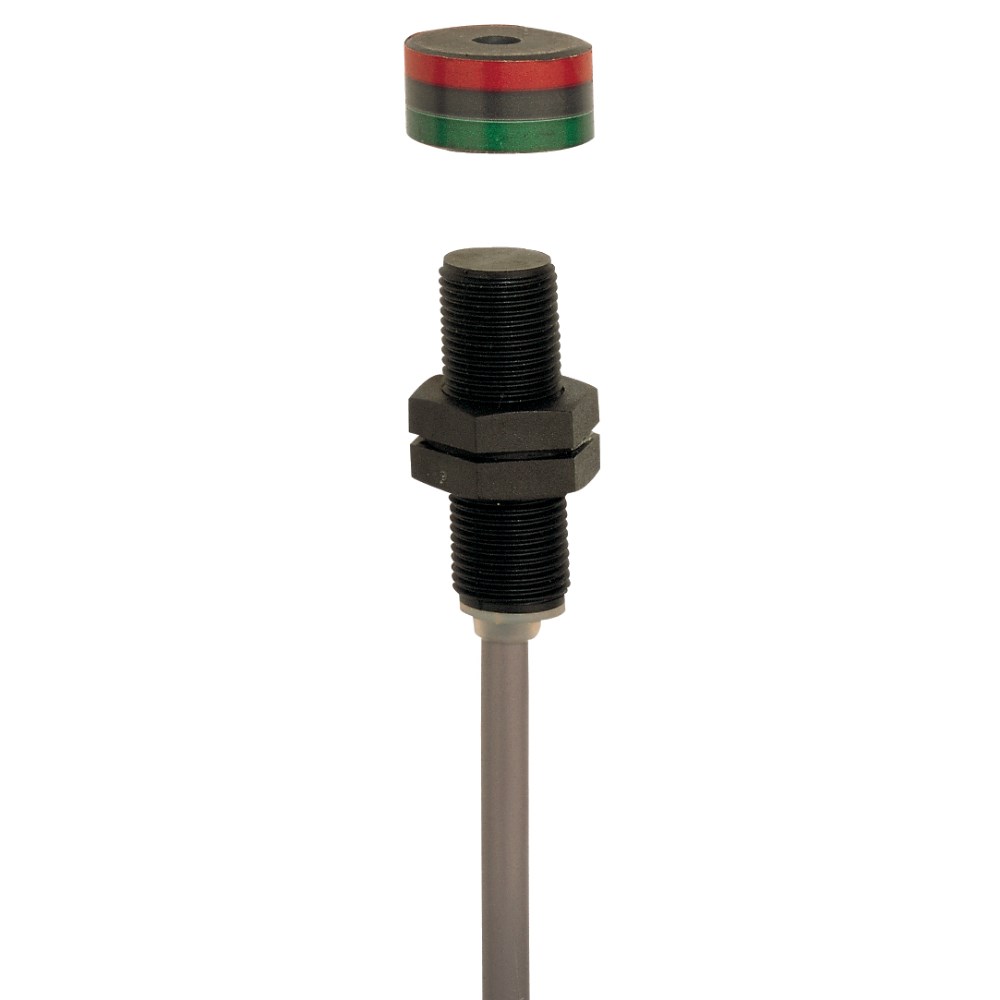

Schmersal 101144422 Magnetic Safety Sensor 1m Cable

Product Code: 101144422

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP67 rating
  • Long mechanical life of 25 million cycles
  • Operates in -25 to 70°C temperature range
  • Complies with EN IEC and ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 120

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.25A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BP 10; BP 15 SS; BP 8; BP 6
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
38.5mm
Weight
0.045kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
