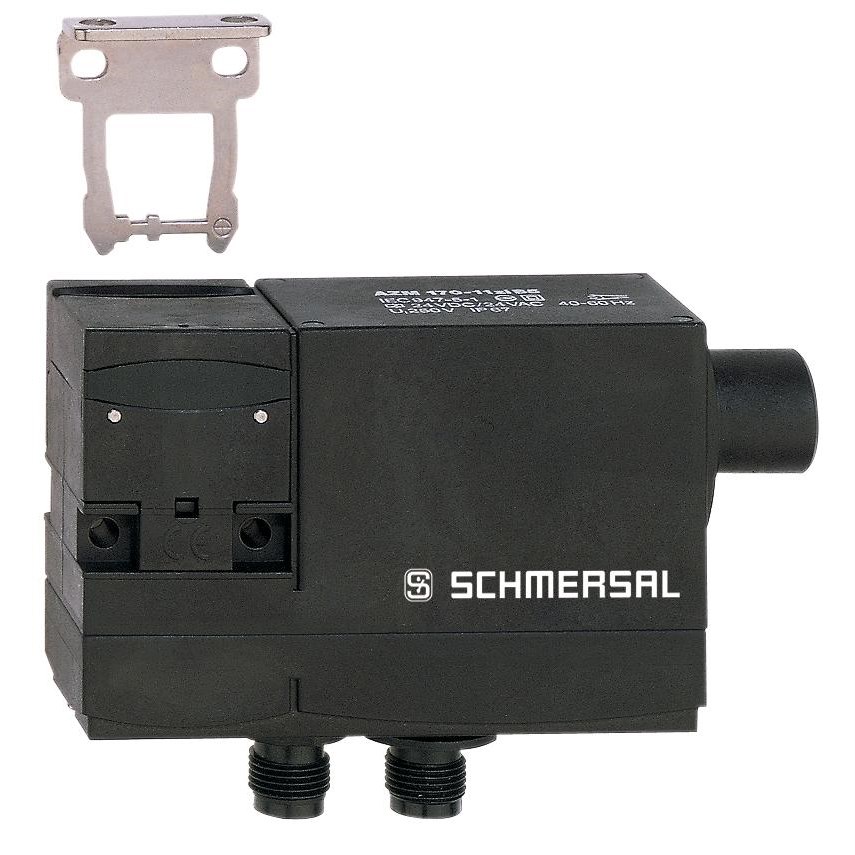

Schmersal 101144372 Solenid Interlock Switch 24VAC/VDC 1NO+1NC

Product Code: 101144372

  • Operates on 24 VAC/VDC power
  • Durable with 1 million mechanical cycles
  • IP67 protection for harsh environments
  • Compact size: 30x108x84 mm
  • Meets IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
75.5 mm
Weight
305 g
Width
108 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
