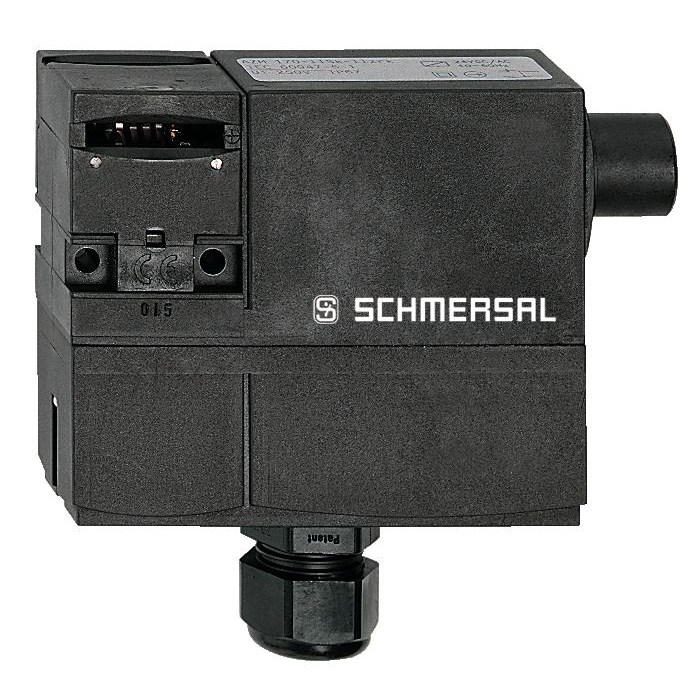

Schmersal 101144269 Solenid Interlock Switch 230VAC 2NC

Product Code: 101144269

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP67 rating
  • Long mechanical life of 1 million cycles
  • Operates in temperatures from -25 to 60°C
  • Slow action with 2NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
Rated Voltage (Ur)
230V AC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
100.5mm
Weight
0.3kg
Width
108mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
