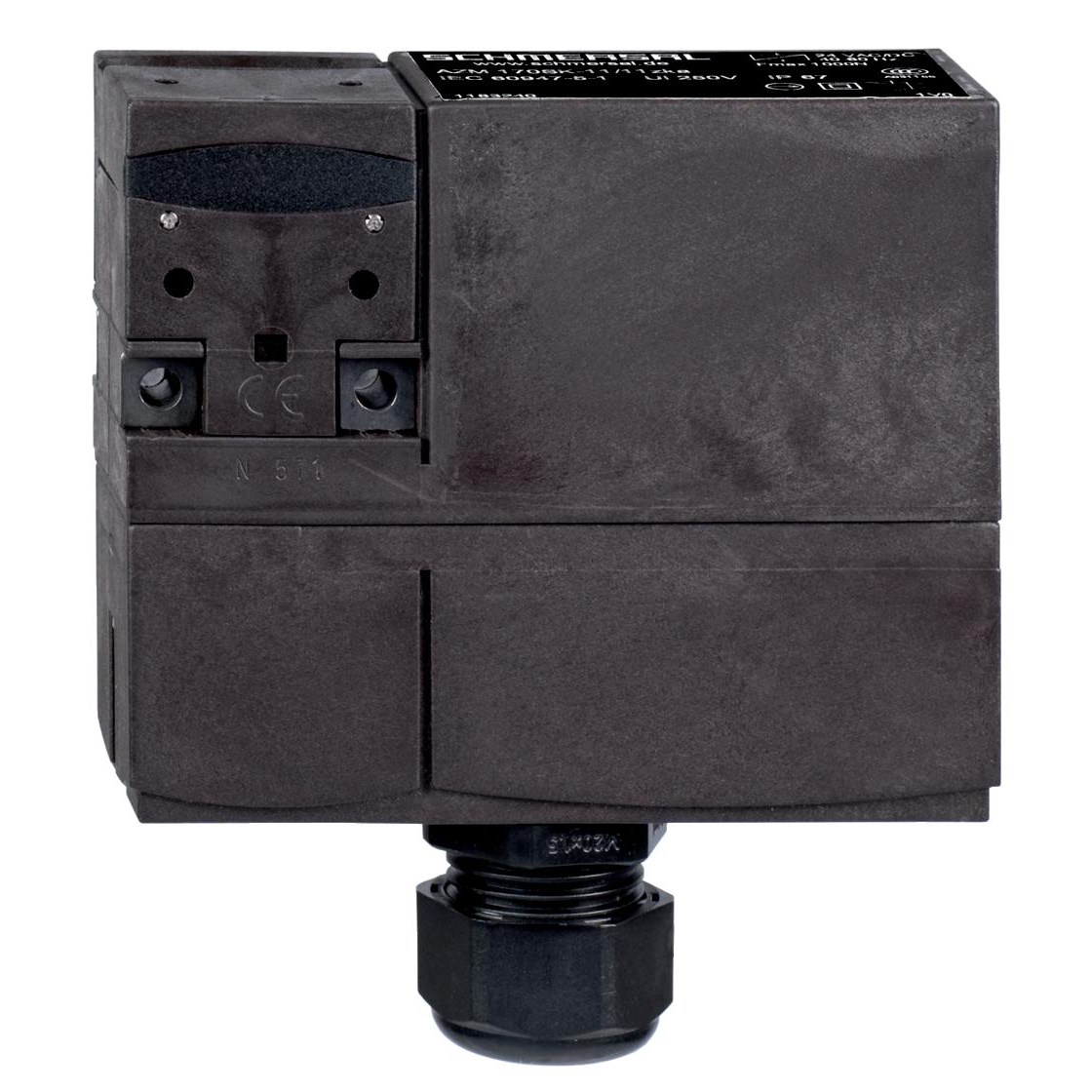

Schmersal 101144262 Solenid Interlock Switch 24VAC/VDC

Product Code: 101144262

  • Durable plastic, glass fibre reinforced housing
  • High protection with IP67 rating
  • Operates in -25 to 60°C temperature range
  • Long mechanical life of 1,000,000 cycles
  • Certified by IFA, cULus, CCC, UKCA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Voltage (Ur)
24V AC/DC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
100.5mm
Weight
0.3kg
Width
90mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
