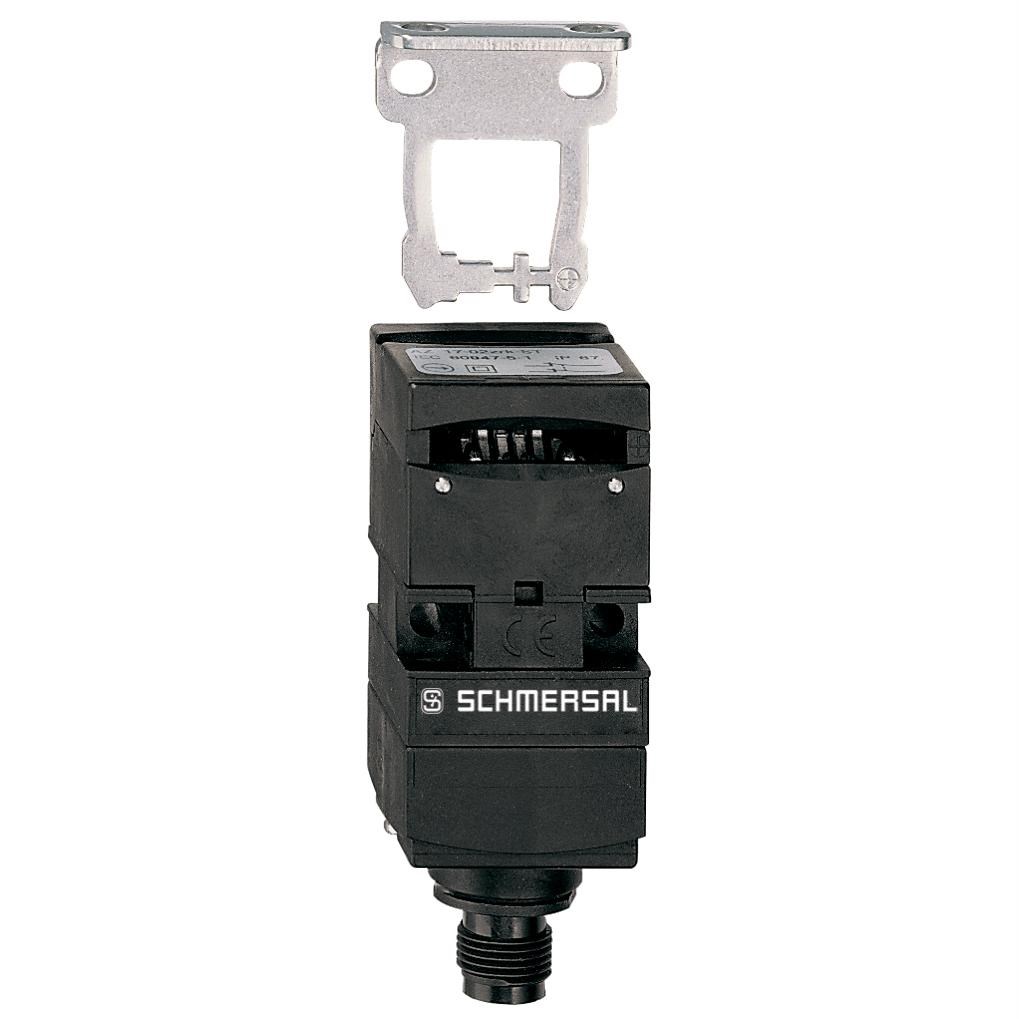

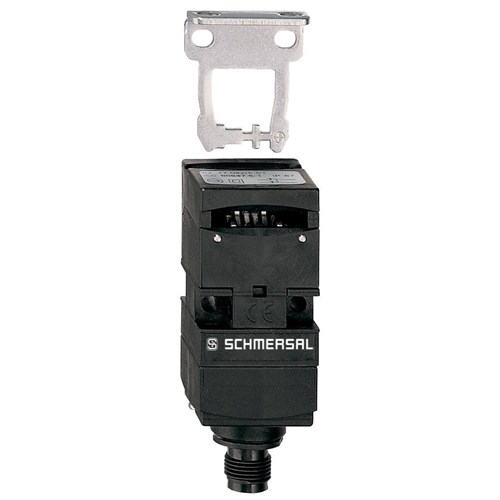

Schmersal 101144088 Safety Switch with Separate Actuator 230VAC 2NC

Product Code: 101144088

  • 230 VAC, 4 A rated for robust performance
  • IP67 protection against dust and water
  • Durable with 1 million mechanical cycles
  • Compact size: 30x30x85 mm for easy installation
  • Slow action, positive break NC contact
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
2
Terminal Type
Connector plug M12, 4-pole, (A-coding)

Mechanical

Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
85mm
Weight
0.091kg
Width
30mm

Environmental

IP Rating
IP67

Documents

IPD Product Catalogue V17
