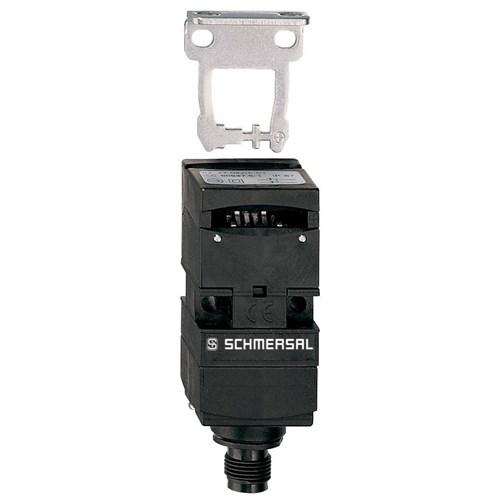

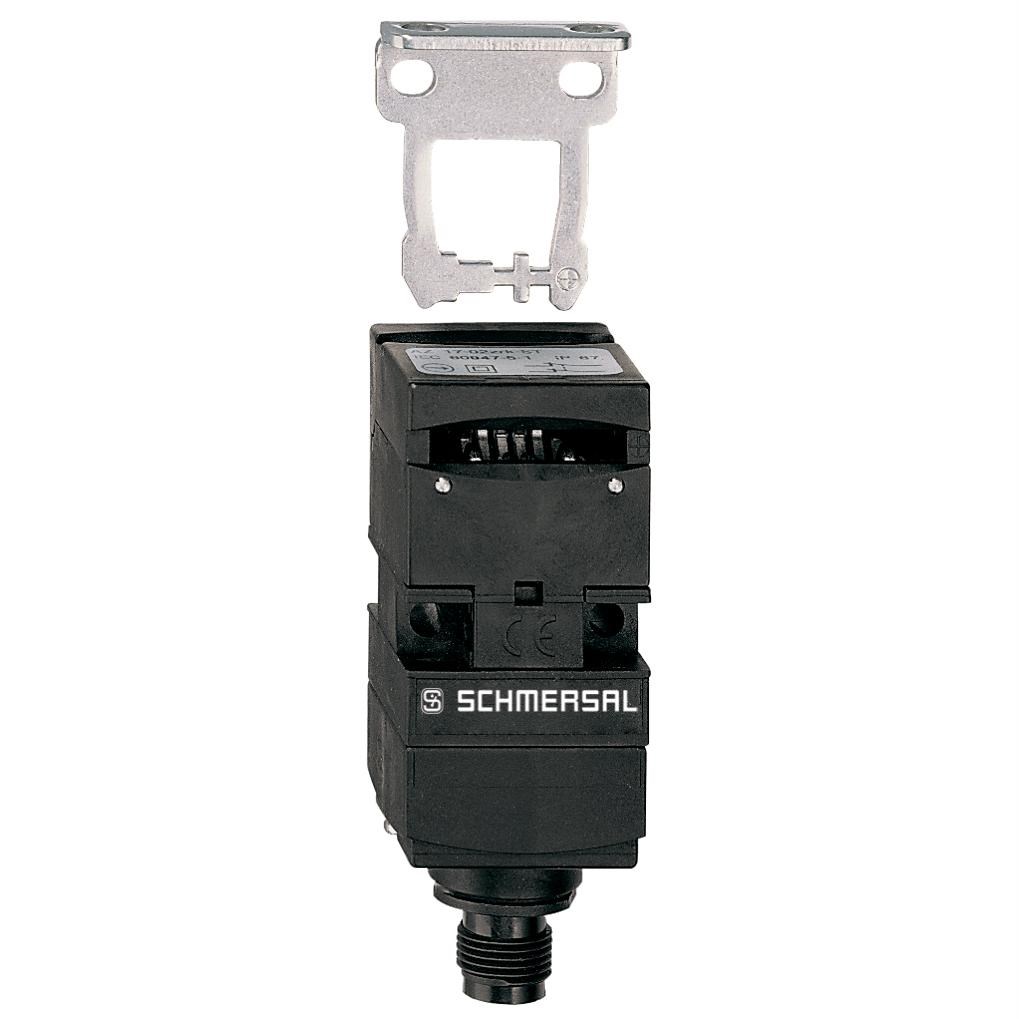

Schmersal 101144081 Safety Switch with Separate Actuator 230VAC 1NO+1NC

Product Code: 101144081

  • 230 VAC, 4A rated for reliable performance
  • Durable with 1 million mechanical cycles
  • IP67 protection against dust and water
  • Compact size: 30x30x85 mm
  • Slow action with positive break NC contact
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Terminal Type
Connector plug M12, 4-pole, (A-coding)

Mechanical

Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
85mm
Weight
0.1kg
Width
30mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
